Marantz MM8077 designed for the ultimate music and movie surround sound experience, this 7-channel power amplifier is equipped with the same amplifier technologies that are incorporated in Marantz's reference class hi-fi amplifiers.

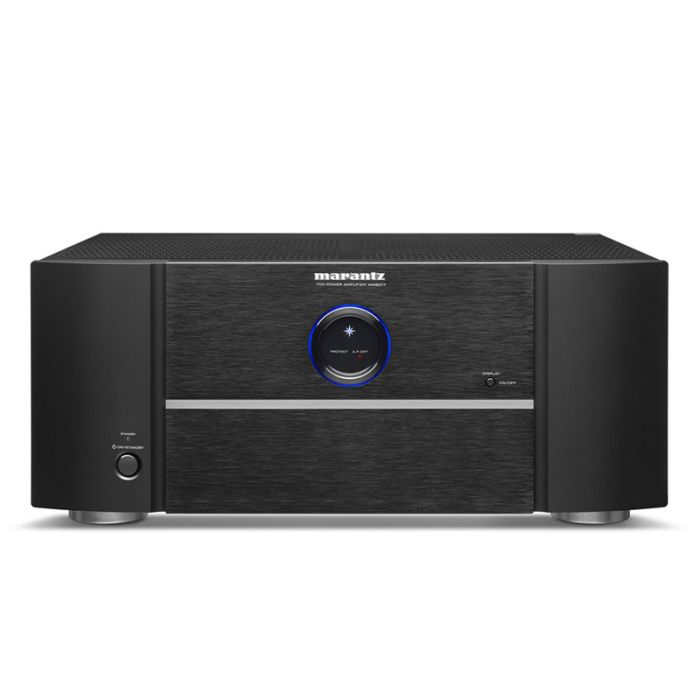

Marantz - MM8077
150W 7-CHANNEL CURRENT FEEDBACK POWER AMPLIFIER CIRCUIT FOR SUPERIOR SOUND
The premium 7 channel MM8077 is expertly crafted to meet all your high power needs with 150W per channel. The entire unit is designed to drive the speakers controlled and precisely to deliver finest audio signals. The copper plated chassis and the toroidal transformer power supply underline this.
Clean And Consistent Power
The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.
Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150W (20Hz – 20kHz, 0.08% THD, 2ch. drive) per channel into 8 ohms, and 180W per channel into 6 ohms.
Power The Most Demanding Of Systems
With todays wide range of speaker systems on the market it is highly important that an amplifier is designed to deliver the optimum performance in any configuration. Of course, one aspect is the power the amplifier can deliver, and also how it can handle the energy coming back from the speaker. The MM8077 is designed to be as insensitive to the connected speaker as possible to always deliver the best audio performance.

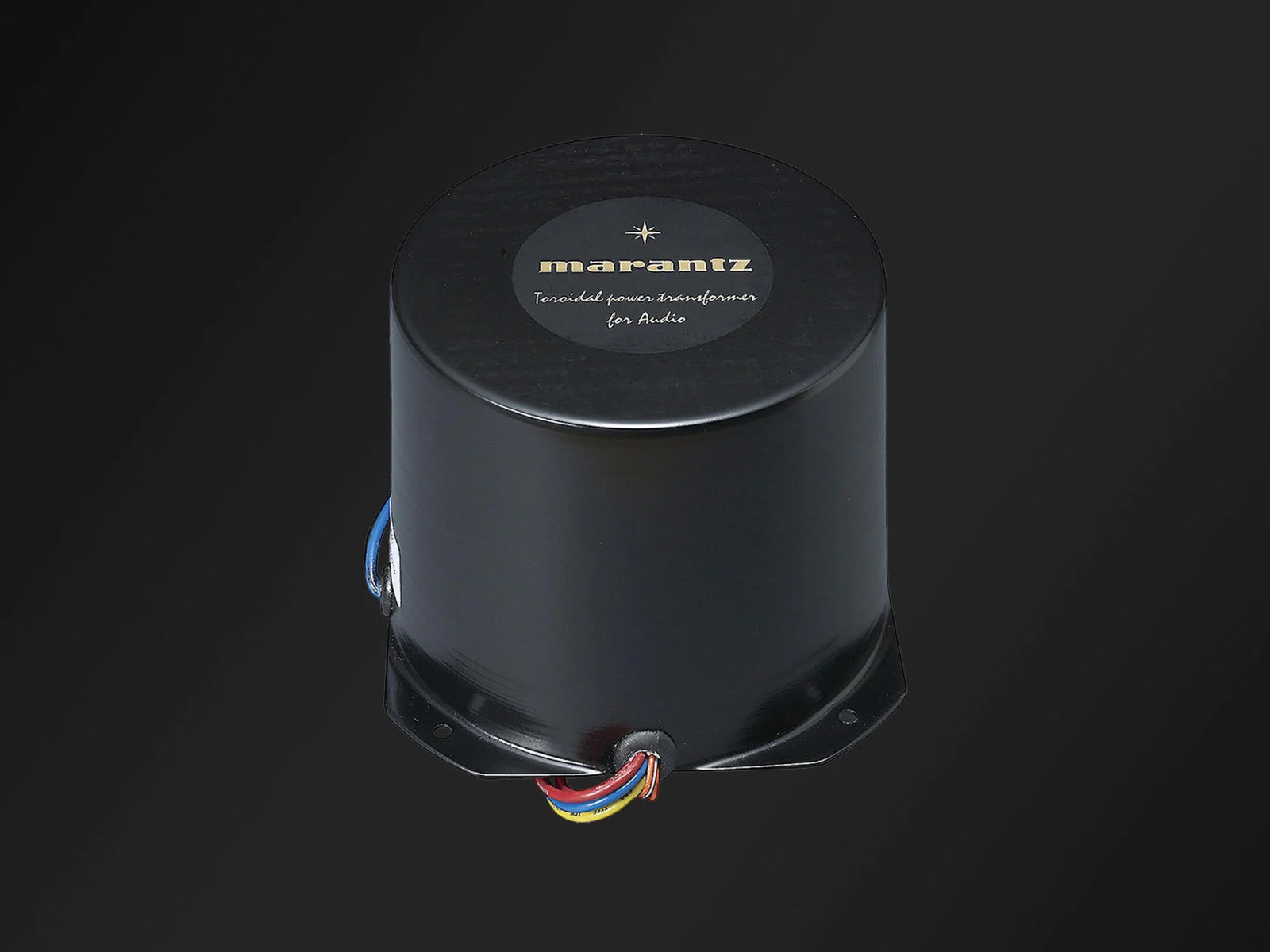

Toroidal Transformer Power Supply
The heart of any amplifier is the power supply delivering all the energy that drives the speakers. In the MM8077 only the best and oversized parts are used. The key source of energy is the power transformer. In this instance Marantz has installed a toroidal transformer instead of the standard EI type, which outperforms the latter with super clean power and minimized vibration.
Featuring Linn's Unique Current Feedback
Featuring Linn's unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today’s high resolution audio formats.
The output devices are mounted on our unique dual extruded aluminum alloy heat sink assembly, configured in a tunnel arrangement that provides both passive and active cooling. The massive heat sinks feature multiple ribbed fins that provide a large passive cooling area, and the assembly is book-ended with a whisper quiet fan that automatically kicks in to provide near silent active cooling when the soundtrack heats up. As the fan is mounted internally directly to the heat sinks, and not externally to the chassis cover as is often the case, even when it’s running, it’s designed to be whisper quiet.
|Current Feedback Topology||Yes|
|Power Transformer: Toroidal / El||Yes / No|
|High Grade Audio Components||Yes|
|Aluminium extrusion heat sink||Yes|
|Copper Plated Chassis||Yes|
|Linear Drive Power Supply||Yes|
|Input buffer amp (all inputs / CD only)||Yes / No|
|Separate Solid Heat Sinks||Yes with tunnel|
|Power Amp direct||Yes|
|Standby Mode||Yes auto|
|Balanced In / Out||7 / No|
|Pre-out / Main-in||No / 7|
|Power Amp Direct IN||Yes|
|Gold Plated Cinch||Yes|
|Speaker Terminal: Screw / Marantz / WBT||Yes / No / No|
|Number of terminals||7|
|Remote Power Control Trigger - In Out||Yes|
|Flasher In / IR Receiver In||Yes / No|
|Power Output (8 / 4 Ohm RMS)||150 W / 180 W|
|Frequency response||10Hz - 100kHz (+-3 dB)|
|Total Harmonic Distortion||0.03% (20 Hz - 20 kHz)|
|Input Sensitivity: High level||1.2 V / 22 kohms|
|Input Sensitivity: Balanced High level||2.4 V / 30 kohms|
|Signal to Noise Ratio: High level||105 dB|
|Available Colors: Gold / Silver / Black / Silver-Gold||No / No / Yes / No|
|Metal Front Panel||Yes|
|Power Consumption in W||880|
|Standby Consumption in W||0.4|
|Auto Power off||Yes|
|Detachable Power Cable||Yes|
|Maximum Dimensions (W x D x H) in mm||440 x 185 x 384|
|Weight in kg||18|
