Naim NAC 282 Pre Amplifier

The NAC 282 preamplifier introduced a new level of technical and musical performance along with elegant styling.

SKU
NAC282
£4,999.00

NAC 282

Controlled performance.

Step up from the NAC 202 and you arrive at the outstanding NAC 282, which includes the NAPSC power supply unit optionally available on its sibling. The NAPSC independently powers the NAC 282’s digital and control circuits, leaving its audio circuits to either the power supply of a NAC 155 XS or NAP 200 power amplifier, or to one of Naim's standalone FlatCap XS, HiCap or SuperCap power supplies. The result is even greater transparency and superior musicality plus, of course, all the flexibility you’d expect from one of our preamplifiers.

Features

  • Support for both DIN and RCA inputs to facilitate connection into a wider range of systems
  • Silent microprocessor control that sleeps during listening
  • Precision rotary potentiometers with precious metal wipers
  • AV bypass mode for simple connection to an existing AV system
  • Powered input for use with StageLine or SuperLine phono stages

Performance upgradable with FlatCap XS, HiCap or SuperCap power supply; can also be powered from the preamp inputs of the NAP 155 XS or NAP 200 power amplifier

Technology & Craft

Low resonance circuit boards and anti-vibration, resonance control feet maximise isolation, hence minimising the effects of microphonic vibration on the highly sensitive electronic components.

The NAC 282 features a silent microprocessor that sleeps during listening and controls all aspects of the amplifier. Optical protection circuits continuously monitor the power supplies ensuring safe shut-down in the event of a power cut.

A user configurable 'Smart IR' system remote control is supplied. Two of the six inputs on the Naim Audio NAC 282 can be configured either as the usual DIN inputs, preferred for their superior earthing and impedance matching, or for use with the more common RCA phono connectors, allowing a wide range of non-Naim Audio cables and components to be used. A dedicated unity-gain input is provided for use with the Naim Audio AV2 processor or similar.

Audio Inputs

Other Inputs AV input configurable for unity gain
Input Impedance 47kΩ
Analogue Input 4 x DIN, 2 x DIN, RCA
Input Sensitivity 75mV



Audio Outputs

Audio Outputs 2 x variable (DIN), 3 x fixed (DIN)
Other Outputs <50Ω
Line Outputs Variable (level) 775mV
Line Outputs Fixed (level) 75mV, 600Ω
Load Impedance 10kΩ (min.)
Power Outputs Naim phono amplifier



Connectivity

RS232 Optional (DE9 female)
Remote Input RCA on rear (RC5)



Finish

Case Black powder coated
Front Brushed and black anodised



Physical

Weight 7.0 kg
Dimensions (HxWxD) 87 x 432 x 314 mm



Power

Power Supply Options NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap
Supply Voltage 18V, 24V



Supplied with

Supplied with NARCOM-4 Remote Control



Upgrades

Power Supply 2 x Hi-Cap/SuperCap
Other NAPSC



User Control

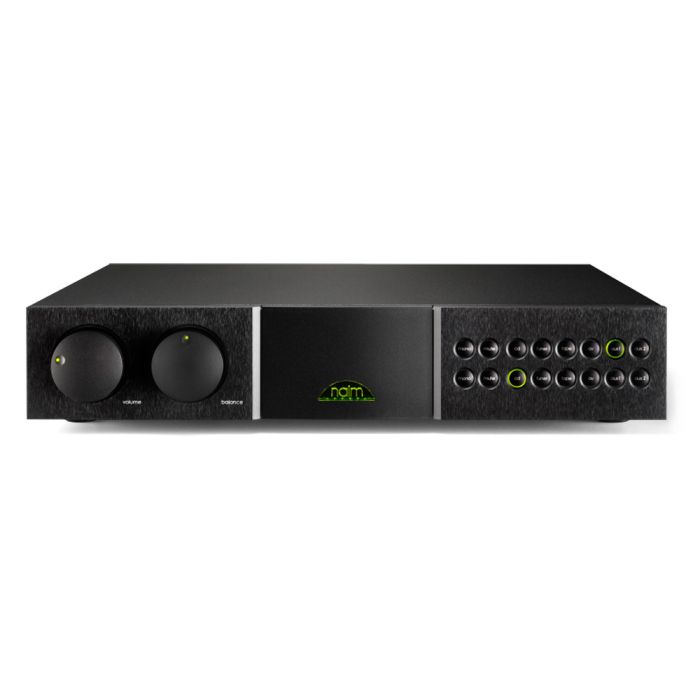

Front Panel Volume control, balance control, sixteen button matrix
Handheld NARCOM-4 Remote Control
Remote Control Infra Red (RC5)
