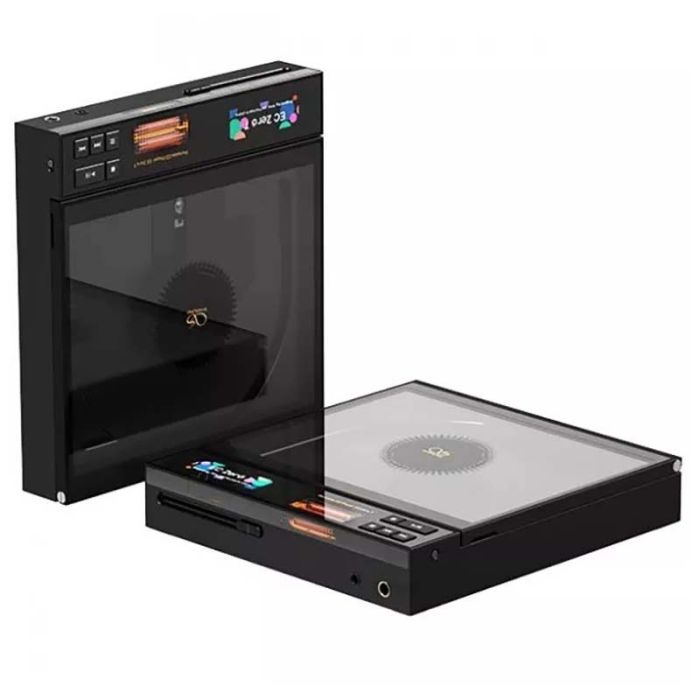

EC Zero T | High-end Portable CD Player | Ultimate Combination of R2R DAC & Tubes
The Most Advanced Portable CD Player
In-house developed R2R DAC - Desktop level Hi-Fi performance
Two JAN6418 tubes - Tube / transistor mode
3.5mm & 4.4mm outputs - Up to 12200 mW @ 32Ω
Highly stable CD playback - Active magnetic clamp
Custom CD mechanism - Fully gapless CD playback
5500 mAh built-in battery - External power mode
Bluetooth transmit function - Coaxial / optical digital output
Dedicated USB-DAC input - DSD512 / PCM 768 kHz
Volume slider
Active Magnetic Clamp | Improved Disc Stability
The new active magnetic design continuously adjusts its position and pressure on the disc, effectively improving the stability of the spin, which significantly reduces undesired mechanical noise and vibrations of the CD drive.
Custom CD System | Gapless CD Playback
Built with a new compact CD drive system, ensuring a desktop-level performance, while providing gapless play-back for all the CDs
Advanced Anti-shake Systems | Smooth Playback Everywhere
Designed with increased focus on portable use, EC Zero T utilizes a range of systems that provide uninterrupted and skip-free CD playback while listening on the go. Vertical or horizontal position, walking or sitting down, the playback stability stays the same.
Top Grade Construction | Thoroughly Tested at Factory
Each unit undergoes a long testing procedure during the production cycle, guaranteeing a perfectly balanced and stable CD mechanism, so critical for ideal disc rotation and audio reproduction.
In-House developed 24-bit R2R DAC | Desktop Hi-Fi Level Performance
EC Zero T follows the trend set by Shanlings desktop DACs and brings the unique R2R DAC to the worlds of portable CD players. 24-bit architecture with 192 high-precision 0.1% resistors, offering such a distinctively sounding alternative to basic Deltya-Sigma DAC designs. And with extra non-oversampling / oversampling switching to further experiment with the ideal sound reproduction.
Pair of JAN6418 Tubes | Inspired by Shanlings Heritage
A pair of low-voltage and power-efficient tubes, suspended in a custom-designed anti-shock structure to eliminate all microphonics and vibrations, adding extra charm to the sound of EC Zero T. Recreating the classic combination of CD players and tubes, so typical for the early days of Shanling.
TPA6120A2 High-Current Op-Amp
Balanced headphone amplifier based around a pair of our favourite TPA6120 op-amps, combined with the Panasonic tantalum capacitors. The proved key to the natural-sounding, yet highly powerful output of Shanling devices.
Built-in Battery On-the-go | External Power at Home
Enjoy the independence of a truly portable CD player thanks to built-in 5500 mAh battery, which provides up to 8 hours of continuous listening absolutely everywhere.
And when you have time to sit down, connect a USB-C power adapter to the EC Zero T, switching it into a dedicated external power mode to provide increased power output and preserving long-term battery condition.
8 hours - 3.5mm output
7.5 hours - 4.4mm output
20 hours - Bluetooth transmitter
From Earphones to Hi-Fi Speaker Setups | Wide Range of Inputs & Outputs
CD or USB DAC: 3.5mm & 4.4mm headphone dual / 3.5mm & 4.4mm line-out / 3.5mm SPDIF coaxial + optical / Bluetooth transmission
Bluetooth V5.3: Connect to Bluetooth headphones or speakers, supporting aptX Adaptive, aptX and SBC codecs
Powerful Headphone Output - 3.5mm Single-ended & 4.4mm Balanced: When combined with the external power supply, EC Zero T provides up to 1220mW @ 32Ω. Single-ended output power, making it suitable for even the demanding audiophile headphones.
