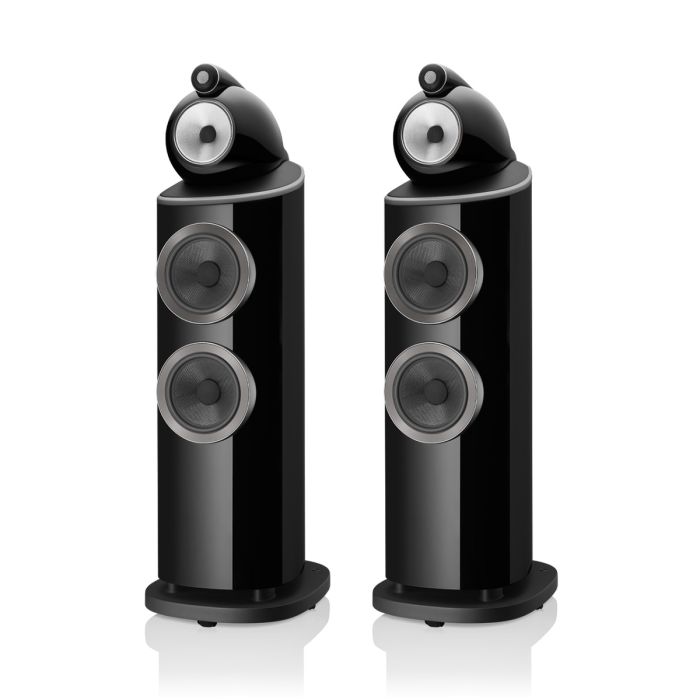

Bowers & Wilkins 803 D4 Floor-standing Speakers (Pair)
The 803 D4 is innovative whilst remaining compact and is available in four classic finishes to suit your environment. Experience all the technical advantages of the Turbine head (the midrange enclosure). This model - being the most compact headed model in the range; is perfectly accommodated in any sized home.
803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.
Aluminium bass pods
803 D4 mounts two Aerofoil™ bass cones in twin solid aluminium bass pods, each of which is clamped into an aluminium plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
|Technical Features||Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Aerofoil™ cone bass units
|Drive Units||1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units
|Frequency Range||16Hz to 35kHz|
|Frequency Response||19Hz to 28kHz (+/-3dB from reference axis)|
|Sensitivity||90dB (on axis at 2.83Vrms at 1m)|
|Harmonic Distortion||2nd and 3rd harmonics (90dB,1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 20kHz
8Ω (minimum 3.0Ω)
|Recommended Amplifier Power||50W – 500W into 8Ω on unclipped programme|
|Max Recommended Cable Impedance||0.1Ω|
