Dali Oberon 1 AV Speaker System with E-9 Subwoofer

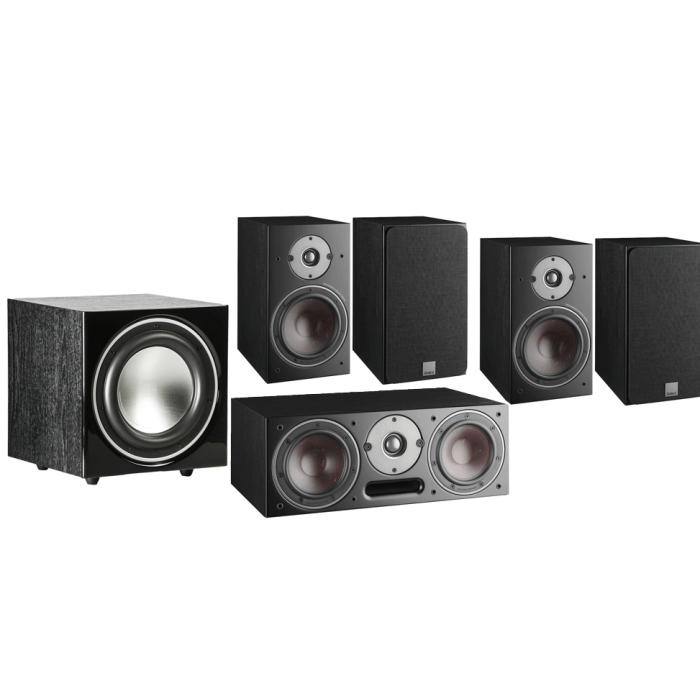

A svelte home cinema package that comprises two pairs of Oberon 1 Bookshelf Speakers, a Vokal centre speaker and a E-9 Subwoofer
A svelte home cinema package that comprises two pairs of Oberon 1 Bookshelf Speakers, a Vokal centre speaker and a E-9 Subwoofer
Dali Oberon 1 Bookshelf Speakers, Oberon Vokal Centre Speaker and Sub E-9 F Subwoofer
The DALI OBERON 1 is a ultra compact bookshelf speaker. The cabinet size enables an optimal balance between inner volume for bass performance and a compact appearance for easy integration - suited for smaller rooms, discreet audio setups or wall mounting. It features the same oversized 29 mm ultra-lightweight soft dome tweeter as its floor-standing siblings, and a SMC based 5.25" wood fibre woofer to handle lower midrange and bass. The OBERON 1 is based on the most innovative DALI ideas, traditions and inventions - united in a sleek compact design.
The DALI OBERON VOKAL delivers a precise, clear and detailed sound performance for both your movie as well concert sound track. It is designed to be the perfect match with any of the speakers in the OBERON series for a complete surround system. It houses an 29 mm ultra-lightweight soft dome tweeter and 2 x 5.25" SMC based wood fibre woofers - combining technologies which make it possible to create a speaker that will render audio like a much larger model.
CONTEMPORARY DESIGN
The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.
PATENTED SMC
The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.
WOOD FIBRE CONE
The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.
EASY TO POSITION
The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.
Read what whathifihave to say about this product here
Dali Sub E-9 F Subwoofer
The launch of the DALI SUB E-9 F marks a new stage of what is possible at this level of subwoofers!
The SUB E-9 features a 9” woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, wellbalanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.
The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
SUB E-9 F is elevated from the floor by cone shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.
The DALI SUB E-9 F is recommended as compliment to the KUBIK FREE as well as the compact models of the ZENSOR and FAZON series. On top of this it is compatible with all DALI loudspeakers as the perfect completion of a DALI stereo or surround set up.
Frequency Range (+/-3 dB) [Hz] | 51 - 26,000 |
Sensitivity (2,83 V/1 m) [dB] | 86 |
Nominal Impedance [ohms] | 6 |
Maximum SPL [dB] | 106 |
Recommended Amplifier Power [W] | 25 - 100 |
Crossover Frequency [Hz] | 2,800 |
Crossover Principle | 2-way |
High frequency driver, Quantity | 1 x 29 mm |
High frequency driver, Diaphragm type | Soft Textile Dome |
Low frequency driver, Quantity | 1 X 5.25" |
Low frequency driver, Diaphragm type | Wood Fibre Cone |
Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 50 |
Connection Input | Single Wire |
Recommended Placement | Shelf or stand |
Recommended Distance From Wall [cm] | 1 - 50 |
Dimensions With Base (HxWxD) [mm] | 274 x 162 x 234 |
Weight [kg] | 4.2 |
Accessories Included | Manual Rubber Feet Front Grille |
Frequency Range (+/-3 dB) [Hz] | 33 - 200 |
Maximum SPL [dB] | 109 |
Crossover Frequency [Hz] | 40 - 120 |
Low frequency driver, Quantity | 1 x 8" long stroke |
Low frequency driver, Diaphragm type | Paper Fibre Cone |
Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 49.0 |
Max. Amplifier Power Output [RMS watt] | 220 |
Continous IEC Power Output [RMS watt] | 170 |
Input Impedance [ohms] | 25k |
Connection Input | Mono (LFE) RCA Stereo (low-pass filtered) |
Magnetic Shielding | No |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 10 - 30 |
Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Max. Power Consumption [W] | 250 |
Standby Power Consumption [W] | 0.4 |
Idle Power Consumption[W] | 10.4 |
Dimensions With Base (HxWxD) [mm] | 335 x 295 x 310 |
Weight [kg] | 10.4 |
Accessories Included | Manual |
Frequency Range (+/-3 dB) [Hz] | 33 - 200 |
Maximum SPL [dB] | 109 |
Crossover Frequency [Hz] | 40 - 120 |
Low frequency driver, Quantity | 1 x 8" long stroke |
Low frequency driver, Diaphragm type | Paper Fibre Cone |
Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 49.0 |
Max. Amplifier Power Output [RMS watt] | 220 |
Continous IEC Power Output [RMS watt] | 170 |
Input Impedance [ohms] | 25k |
Connection Input | Mono (LFE) RCA Stereo (low-pass filtered) |
Magnetic Shielding | No |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 10 - 30 |
Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Max. Power Consumption [W] | 250 |
Standby Power Consumption [W] | 0.4 |
Idle Power Consumption[W] | 10.4 |
Dimensions With Base (HxWxD) [mm] | 335 x 295 x 310 |
Weight [kg] | 10.4 |
Accessories Included | Manual |
