The E1X Advanced Integrated Platform (AIP) draws heavily from Bel Canto’s award-winning Black System, combining advanced analogue and digital engineering into a single high-performance design. Every input follows a carefully optimized circuit path designed to reject noise, preserve signal integrity, and reduce sonic blur. Custom time-optimized filtering enhances clarity, dynamics, and overall musical impact, allowing recordings to sound more natural, focused, and engaging across a wide range of sources.

The E1X Integrated has been designed without compromise, incorporating proprietary technologies such as the HDR-II (High Dynamic Resolution) DAC core and the AMiP (Asynchronous Multi-Input Platform). Whether streaming over Ethernet or USB, spinning CDs through digital inputs, or connecting traditional analogue sources, the amplifier is engineered to extract maximum performance from every component. Vinyl playback is equally supported through a sophisticated internal MM/MC phono stage with software-controlled settings for greater flexibility.

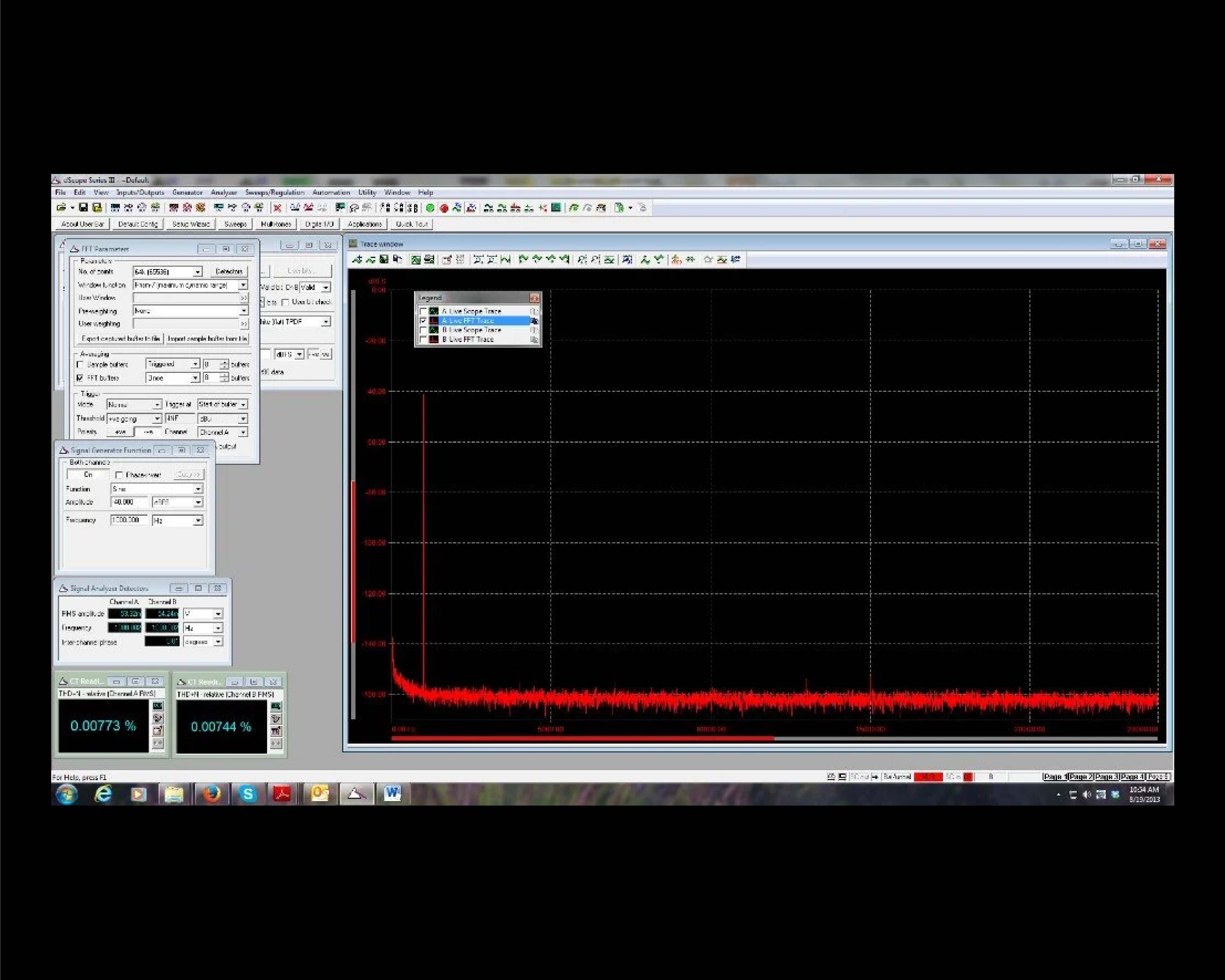

All incoming source signals are asynchronously re-clocked into a fully balanced DAC stage capable of measuring below 0.001% distortion with an impressive 126dB dynamic range. By eliminating the original source clock and replacing it with Bel Canto’s ultra-low-noise master clock circuitry, the E1X dramatically reduces jitter and digital timing errors. This process helps preserve delicate musical details while improving transparency, precision, and overall realism during playback.

Network streaming performance is a major focus of the E1X Integrated, with asynchronous Ethernet and USB-A connectivity supporting high-resolution playback up to 24-bit/384kHz, along with MQA and DSD128 compatibility. Users can stream from subscription services, NAS drives, or external storage devices while maintaining full wireless control via Bel Canto’s SEEK app for iOS. Android users can access similar functionality using the MConnect application, providing flexible access to modern music libraries.

At the heart of the amplifier is Bel Canto’s AMiP platform, an advanced asynchronous processing system powered by six separate processor units. This includes dual 32-bit XMOS processors, dual ARM processors, and two dedicated audio processors working together to manage streaming, USB, SPDIF, AES, TOSLINK, analogue, and phono inputs. The platform also handles DSD and MQA decoding alongside Bel Canto’s custom integer up-sampling and Time Optimized filtering technologies for improved sonic performance.

The HDR-II DAC core represents more than two decades of Bel Canto digital audio development. Designed to increase resolution, reduce jitter-related artefacts, and improve analogue output performance, the HDR-II architecture delivers exceptional detail without sounding harsh or overly analytical. Rather than emphasizing brightness, the design focuses on musicality, emotional engagement, and natural presentation, allowing recordings to retain their original character with outstanding clarity and balance.

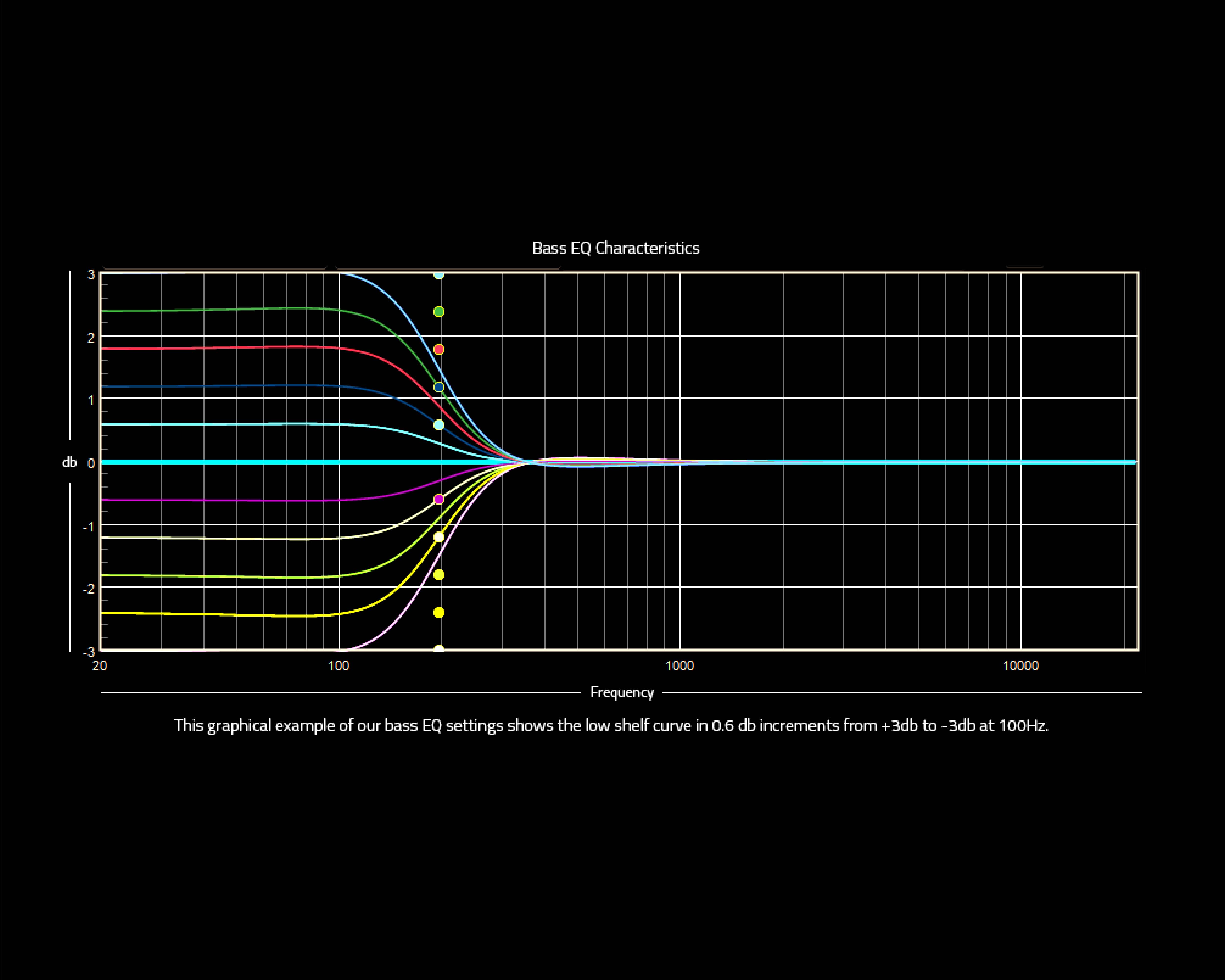

The E1X-DC1 also includes advanced bass management and versatile analogue connectivity for seamless integration into a wide range of systems. Adjustable Butterworth high-pass and low-pass crossover filters allow optimized subwoofer integration with selectable frequencies between 40Hz and 120Hz, alongside dedicated subwoofer gain adjustment. Two analogue line-level inputs with 110dB dynamic range support legacy components such as tuners, tape decks, and home theatre bypass configurations for maximum system flexibility.

The E1X also includes advanced bass management and versatile analogue integration features for more complex audio systems. Adjustable high-pass and low-pass filters allow precise subwoofer integration with selectable crossover frequencies between 40Hz and 120Hz, alongside dedicated subwoofer gain adjustment. Two high dynamic range analogue line inputs support traditional sources such as tuners, tape decks, or home theatre bypass configurations, making the amplifier highly adaptable for both modern and legacy systems.
