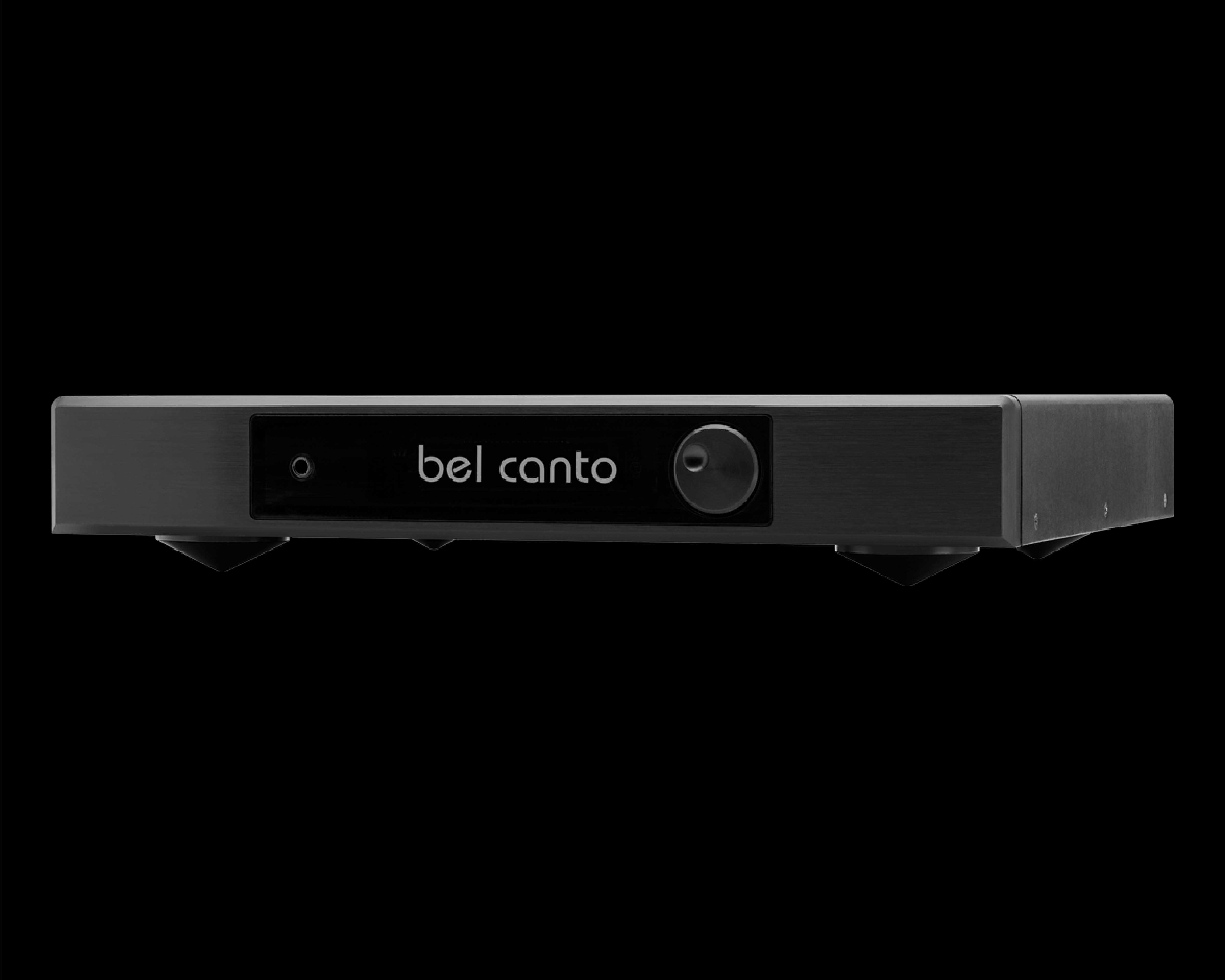

The E1X-DC1 DAC Control Preamplifier introduces Bel Canto’s Advanced Integrated Platform technology in a streamlined single-chassis design inspired directly by the flagship BLACK system architecture. Combining the company’s HDR-II DAC technology with the powerful AMiP processing platform, the DC1 is designed for listeners seeking uncompromised sound quality alongside simple, intuitive operation. Its sonic character focuses on musical realism, emotional engagement, and effortless system integration.

At the heart of the E1X platform is a sophisticated signal architecture engineered to optimize both analogue and digital performance. Every input follows a carefully designed circuit path intended to minimize noise, preserve signal integrity, and improve overall clarity. Bel Canto’s custom time-optimized filtering technology further reduces sonic blur while enhancing detail retrieval, dynamic expression, and precision across every source connected to the preamplifier.

The E1X-DC1 supports an extensive range of modern and traditional audio sources, delivering high-end performance regardless of input type. Streaming over Ethernet or USB, digital playback from CD transports, analogue line-level sources, and vinyl replay through the built-in MM/MC phono stage are all handled with equal care. This flexibility allows the DC1 to function as a complete control centre for sophisticated music systems without sacrificing sound quality or usability.

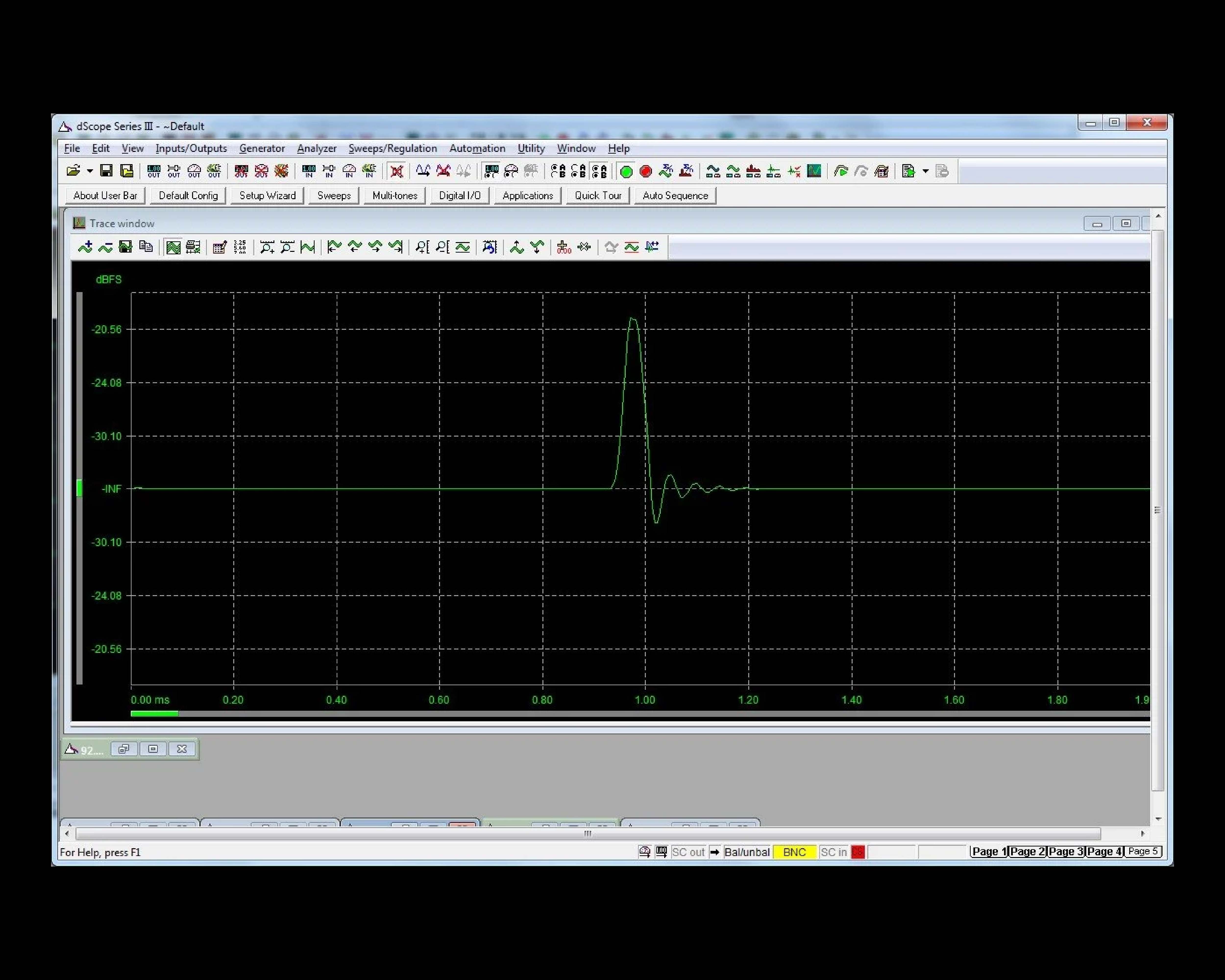

Bel Canto’s HDR-II DAC core has been engineered to reproduce low-level musical detail with exceptional purity and minimal distortion. The design begins with ultra-low phase noise master clocks powered by dedicated low-noise analogue regulators, ensuring highly accurate timing performance. Dual asynchronous interfacing stages isolate the DAC from incoming signal noise and jitter, while custom MQA-based digital filters optimize impulse response for PCM, DSD, analogue, and MQA playback formats.

A major advantage of the HDR-II architecture lies in its fully balanced Class A analogue output stage. The differential current-mode design operates under constant bias conditions, maintaining thermal stability across every resistor, capacitor, and amplification device within the circuit. This approach preserves dynamic contrast and musical nuance while delivering a refined, natural sound that remains smooth, detailed, and highly expressive across all types of recordings.

Vinyl playback performance is enhanced through a dual-stage phono architecture featuring an ultra-low-noise RIAA amplifier with precision filtering components and fixed 40dB gain. A digitally controlled analogue gain stage allows compatibility with a wide variety of MM and MC cartridges, while adjustable loading settings enable users to fine-tune impedance directly from the menu system. The result is accurate, low-noise phono reproduction with excellent cartridge matching flexibility.

There are 2-line level analog inputs that provide 110dB of dynamic range and can be used for legacy analog sources such as tape, tuner or a home theater bypass where the volume level would be set to a high setting (84.0) on the ACI 600 and volume is controlled through the home theater processor. These inputs enhance the ability to integrate the E1X DAC into many different systems with many different signal sources.
