Exploring new frontiers Symphony of retro elegance and modern technology

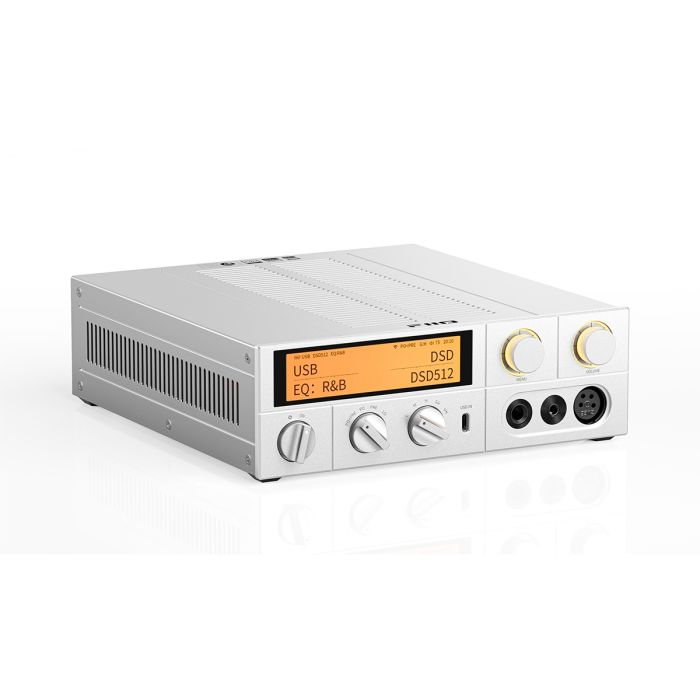

This is the next generation desktop decoding headphone amplifier, aiming to be a unique and excellent performer. It is a symphony of retro elegance and cutting-edge technology, featuring a unique design and rich functionality all wrapped in a powerful package. The FIIO K17 is not only the upgraded successor to the K9 Pro, but also an exploration of new possibilities for a high-end desktop DAC and headphone amplifier.
A mixing console for desktop HiFi | Specialty chips for specialty uses Exceptionally strong
The K17 features an M21586Q DSP chip which is capable of double- precision 64-bit floating-point calculations and runs at a high 360MHz clock frequency. This chip is complemented by a high-performance ES9821Q ADC as well as a specially customized ultra-low phase noise femtosecond crystal oscillator. These three components allow the user, in all modes, to utilize the 31-band high-precision lossless PEQ. The PEQ is designed to ensure the audio signal is still of high fidelity even after being processed. The chip also allows for robust output protection functionality, ensuring that headphones and other connected audio equipment are fully protected.
7.84-inch automative-grade large colour screen, Excellent usability
With a larger colour screen than similar products, combined with a custom Android 12 build that features a custom portrait display system, the display is clear and easy to read. Interacting with the device directly is intuitive, so that it is easy to handle various operations right out of the box. You can directly feel how each touch gets you easily and quickly to where you want.
Discrete class AB transistor current amplification headphone amplifier
An important part of the K17 is a carefully crafted fully discrete amplifier circuit for headphones. This discrete circuit is of an OP+ transistor current amplification design, equipped with the classic pair of ON Semiconductor MJE243/253 transistors. It is capable of producing high current with low output impedance. The result is up to 4000mW+4000mW output power in balanced mode, nearly double that of the K9 Pro ESS. This allows it to easily drive various kinds of headphones and IEMs and to produce smooth, pleasant, and natural sound.
AKM flagship DAC AK4191+AK4499EX x2
In the K17 is the flagship AKM DAC chip combination - AK4191+AK4499EX*2. Two AK4499EX chips handle each channel. The 8-channel to 4-channel LPF design reduces common mode interference, resulting in better channel separation and dynamics. It also features a newly designed architecture with fully separated digital/analogue portions, which also incorporates the newly developed “DWA ROUTING” technology for an even cleaner audio background and improved resolution.
Fully balanced design
From the DAC to the I/V conversion, to the low-pass filtering, and to headphone amp, the entire audio circuit is of a fully differential circuit architecture design. This ensures both high dynamic ranges of the signals as well as significantly reduced crosstalk. Various parts of the audio circuit, including the I/V conversion and LPF stages, use multiple low-noise precision operational amplifiers OPA1612 to ensure dynamic audio output.
Physically separated boards
The various sections of the internal power supply, digital, and analogue sections are all located on physically separated circuit boards to avoid interference between them. This ensures the accuracy and integrity of signal processing for purer, cleaner audio output.
Precision power supply design | 35W low-noise linear power supply Five large 4700μF electrolytic capacitors
Powering the K17 is a custom high-quality low-noise transformer, ensuring the purity of the power supplied. Additionally, five 4700μF electrolytic capacitors provide ample power reserves to ensure a steady supply of power.
Separate power supplies for analogue and digital circuits
Separate power supplies for the digital and analogue circuits effectively avoid crosstalk and interference between them.
multi-stage analogue power supply
The K17’s analogue audio circuit is powered by a multi-stage power supply. Many of the stages have a dedicated power control circuit, including those for the digital-to-analogue conversion, LPF, and transistor. Low-noise, high-power supply rejection ratio (PSRR) TPA7A47/7A33 LDO regulators also act as secondary voltage regulators to continuously provide stable and clean power.
Precisely restored audio Every last detail audible | 3 ACCUSILICON low phase noise femtosecond audio crystal oscillators
The K17 employs three industry-leading ACCUSILICON ultra-low phase noise femtosecond crystal oscillators, including the AS318-L (45.1584MHz, 49.1520MHz) and AS318-Pro (24.576MHz). These significantly reduce the impact of phase noise on audio signals, allowing audio signals of various sampling rates to be precisely and faithfully restored – resulting in purer and more consistent sound.
Dual-core design Smooth stable experience
High-performance X2000 multi-core processor: The processor features a unique design consisting of a main XBurst@2 CPU core with two logic CPUs plus an XBurst@ small core. This chip offers excellent computing power with low power consumption. The X200 ensures precise audio signal processing and stable, smooth audio playback. Low-power ESP32-S3 SoC: Within this chip is a high-performance Xtensa 32-bit LX7 dual-core processor capable of running up to 240MHz as well as an ultra-low power consumption co-processor. This SoC allows the K17 to provide a fast and smooth user experience.
Square and circle A surprisingly synergistic combo
The design cleverly blends square and circle into a harmonious whole, combining retro elegance with a modern technological aura, for a refreshing experience. There is thoughtful consideration in both functionality and design: examples include the multiple knobs exist for easier control, and a grid structure for faster heat dissipation.
Listen without worry Multiple protection systems
Listen with peace of mind with various protection mechanisms that can intelligently detect abnormal conditions and perform automatic protection to avoid damage to the device, including headphone amp temperature protection, transformer temperature protection, output overload protection, output DC protection, and power input overcurrent protection.
Wired or wireless Always online
The Ethernet port supports up to Gigabit speeds for fast and stable data transmission. The AP6256 Wi-Fi module supports 2.4G and 5G wireless networks as an alternative yet equally stable method of transmitting lossless audio.
