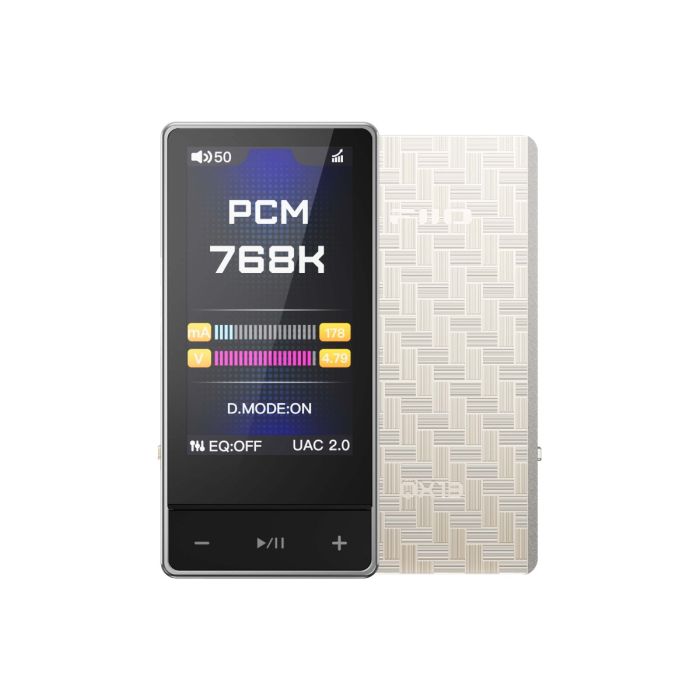

QX13 - Portable High-Res Lossless Music Player
900mW + 900mW desktop-level power
ESS 8-channel DAC ES9027PRO
6 TI high-precision op-amps
XMOS 16-core XU316
10-band high precision PEQ
1.99-inch colour display
Included magnetic protective leather case
High Specs | New Chapter
Brings together over a decade of FiiO's technical expertise.
Combines the Q series of portable amps with magnetic / attachable features.
Creating a high-end, fully integrated ecosystem audio dongle.
Fully Carbon Fibre Body | Always Pushing Boundaries
Pushing the boundaries of what can be done - the QX13 is made with 21 layers of stacked carbon fiber for a lightweight yet durable build. The carbon fiber also allows it to be resistant to interference and heat, while featuring a unique texture and a premium feel.
More than 6x stronger than steel
Anti-interference and thermal insulation
270° - Carbon fibre coverage on 5 surfaces
Extra Large Colour Display | A Fresh Perspective
The QX13 features an extra-large colour display outfitted with Corning third-gen high-strength glass for greater durability and scratch resistance, rare among audio dongles. Multiple newly developed personalized UI themes powered by a 32-bit processor ensure that the user experience is unrivaled among audio dongles, making it just right for you whether in portrait or landscape mode.
Desktop-grade DAC | ESS SABRE PRO | Flagship ES9027PRO
The chip features a fully differential audio architecture design with 8 channels set up in parallel, and is paired with a pair of ultra-low-noise ES9312 regulators for precise output matching on each audio channel. Audio signals are accurately restored thanks to this pair of chips' optimized power efficiency and effectiveness in reducing clock jitter.
6 High-end TI OP-amps | Powerful and Stable Output with High Efficiency
The QX13 uses four wafer-level precision-integrated INA1620 chips, with a specially designed internal layout to significantly reduce crosstalk - for no interference between channels even under extreme conditions. Additionally, two low-noise, low-distortion OPA1692 chips are employed to ensure excellent dynamics under various load conditions.
Patented Desktop Mode | Adaptive Regulation | Balancing Performance and Power Consumption
Thanks to its new configurations, optimized audio circuit, and more efficient heat dissipation, the QX13 in desktop mode can deliver power comparable to full-size headphone amplifiers while also significantly reducing power consumption. It also features a high-precision power meter, capable of accurately assessing the power supply capabilities of different USB sources and intelligently adjusting accordingly the headphone amplifiers gain and output power.
Digital and Analogue Separation | Multi-layer Shielding
The digital and analogue boards are separated and equipped with a shielding cover for isolation, ensuring precise and dynamic signal processing. This design also effectively absorbs and dissipates heat, enabling effective thermal management and ensuring the QX13 delivers sustained high-power-output.
XMOS 16-core XU316 | Uniquely Brilliant
The QX13 has pro-grade USB audio quality, with high performance, low latency, and support of up to 768 kHz / 32 bit PCM and DSD512 native decoding. Dual ultra-low phase noise, low temperature drift femtosecond crystal oscillators ensure that audio of various sampling rates is correctly handled for the best sound quality. The XMOS XU316 also allows for a 10-band lossless PEQ, which can be tuned either via the Android FiiO Control app or through the web, making it easy to dial in your sound.
Multiple Custom PEQ - Simulate or modify headphone frequency response curves
Built-in Presets - No barriers to getting started
Massive Tuning Sharing Community - Making it easier to play around with tuning
Specially-designed Audio Architecture | Rivalling pro DAC and Headphone Amplifiers
The QX13 condenses audio architecture design found in fairly high-end DAC and headphone amplifiers into a small dongle. The QX13 with its design achieves high-precision conversion of audio signals to the DAC thanks to dual crystal oscillators. The audio signal goes through multiple stages of analogue processing - including LPF voltage amplification, BUF current boosting and parallel-enhanced current expansion - delivering sound quality comparable to that of professional DAC and headphone amplifiers.
Full Ecosystem of Accessories | The Essence of Portable Hi-Fi
The included magnetic leather case achieves perfect alignment for an iPhone. For Android devices, the included magnetic ring can be used to achieve the same result
It's compatible with the ESTICK mini powerbanks, allowing you to travel light while still having powerful audio output. Turn on the charging function to allow it to be charged by ESTICK, and you have a mini desktop-grade audio set-up.
Comes standard with an 8-strand decoding cable - 6 strands of monocrystalline copper + two strands of silver-plated monocrystalline copper, giving pure high-fidelity sound.
Want Everything | Get Everything
3.5mm output supports SPDIF out
UAC1.0 mode supports Switch/PS% and other devices
Temperature regulation, DC output regulation, Max volume limit
Supports Android FiiO Control App / Web
60-step and 120-step volume adjustment scales
