The D‑03R upgrades standard CD fidelity, converting 44.1 kHz/16‑bit discs through a high-resolution processing engine and low-noise buffer. Dual-mono ROHM BD34352EKV DACs with selectable digital filters ensure superior analogue output. Each input uses dedicated low-jitter circuitry, supported by an ultra-low-phase-noise master clock for precise timing. The D‑03R also functions as a stand-alone DAC, accepting PCM up to 384 kHz/32‑bit and DSD up to 22.5 MHz via USB, and PCM up to 192 kHz/24‑bit via S/PDIF. Full MQA decoding is supported, with a bypass mode for non-MQA playback.

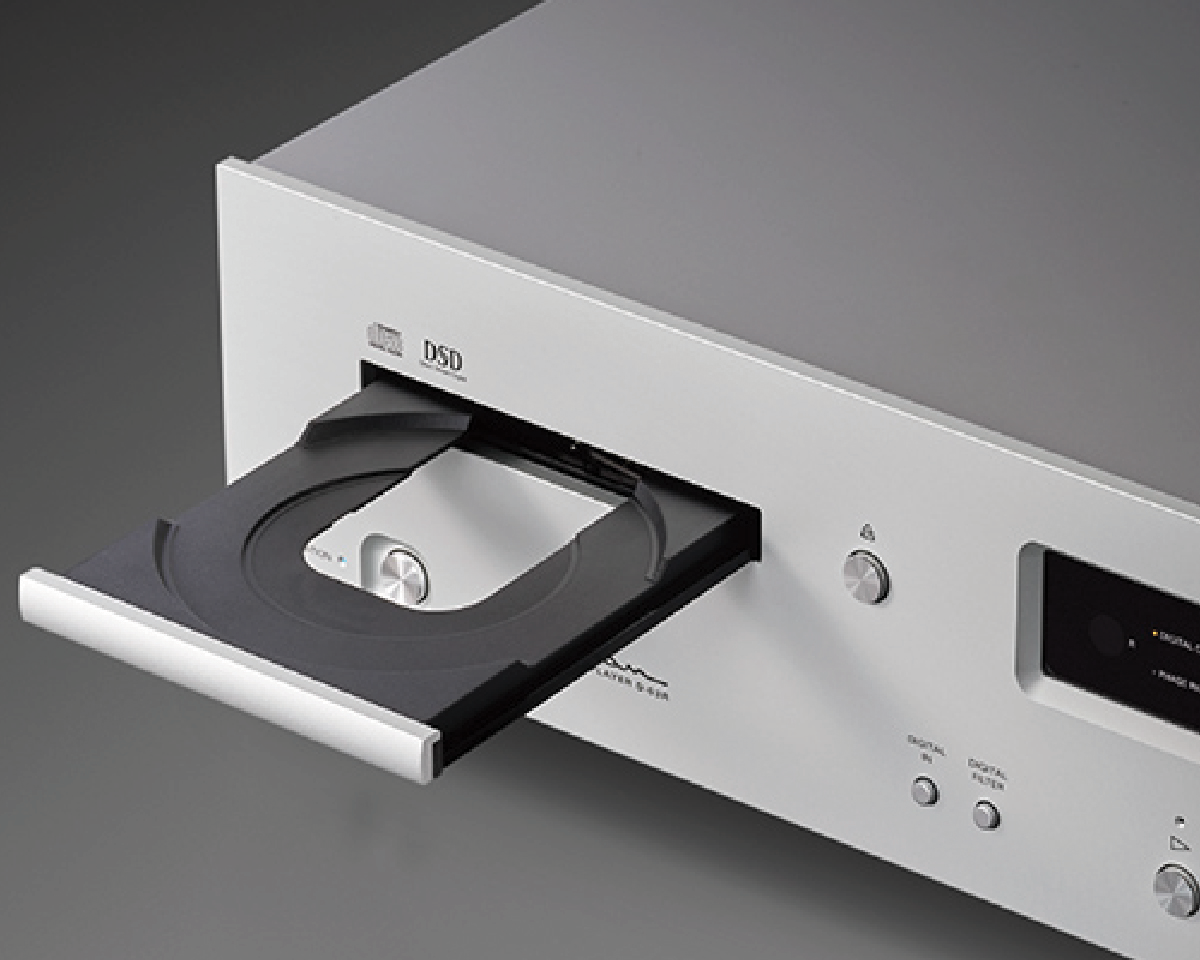

The D‑03R features a dedicated single-laser CD drive in a rigid 3.2 mm steel-mounted structure, shielding it from vibration for precise, stable reading. Dual-mono DAC outputs pass through Luxman’s custom components, smooth circuit traces, and OFC wiring into a fully balanced I/V conversion stage and low-impedance buffer, driving downstream equipment with authority. An asymmetrical left-side layout integrates the CD transport, digital processing, and analogue stage, optimising signal flow, reducing vibration, and balancing weight, forming a cohesive design that enhances sonic performance and musicality.

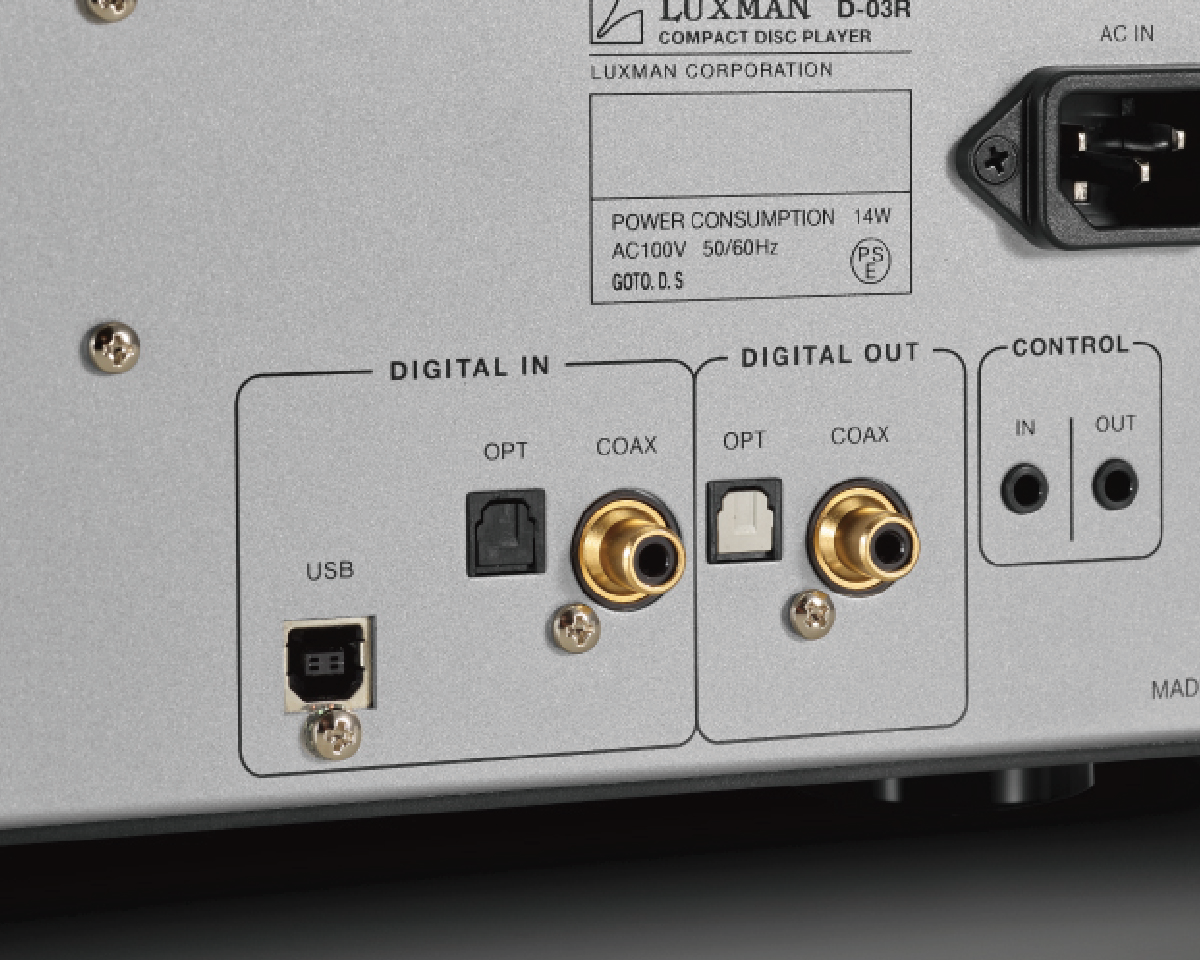

The D‑03R features two pairs of analog outputs: gold-plated RCA terminals, with a standard 18 mm pitch, and high-grade XLR terminals manufactured by Neutrik. On the digital side, in addition to a USB input supporting PCM and DSD formats, the unit is equipped with newly enhanced coaxial and optical S/PDIF terminals, both input and output being compatible with DoP (DSD over PCM) signals. This allows flexible system expansion when paired with various audio components, including Luxman's NT‑07 network transport.

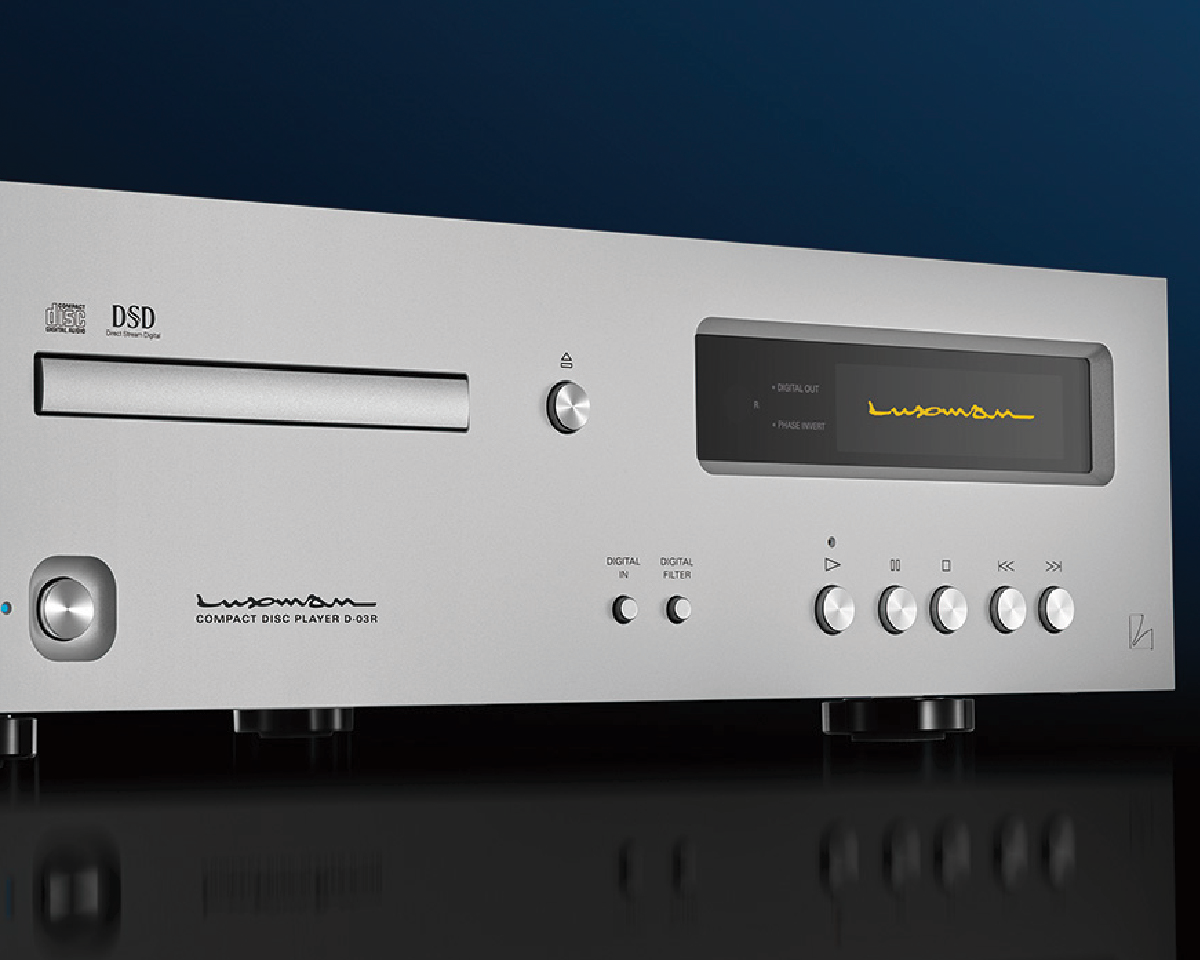

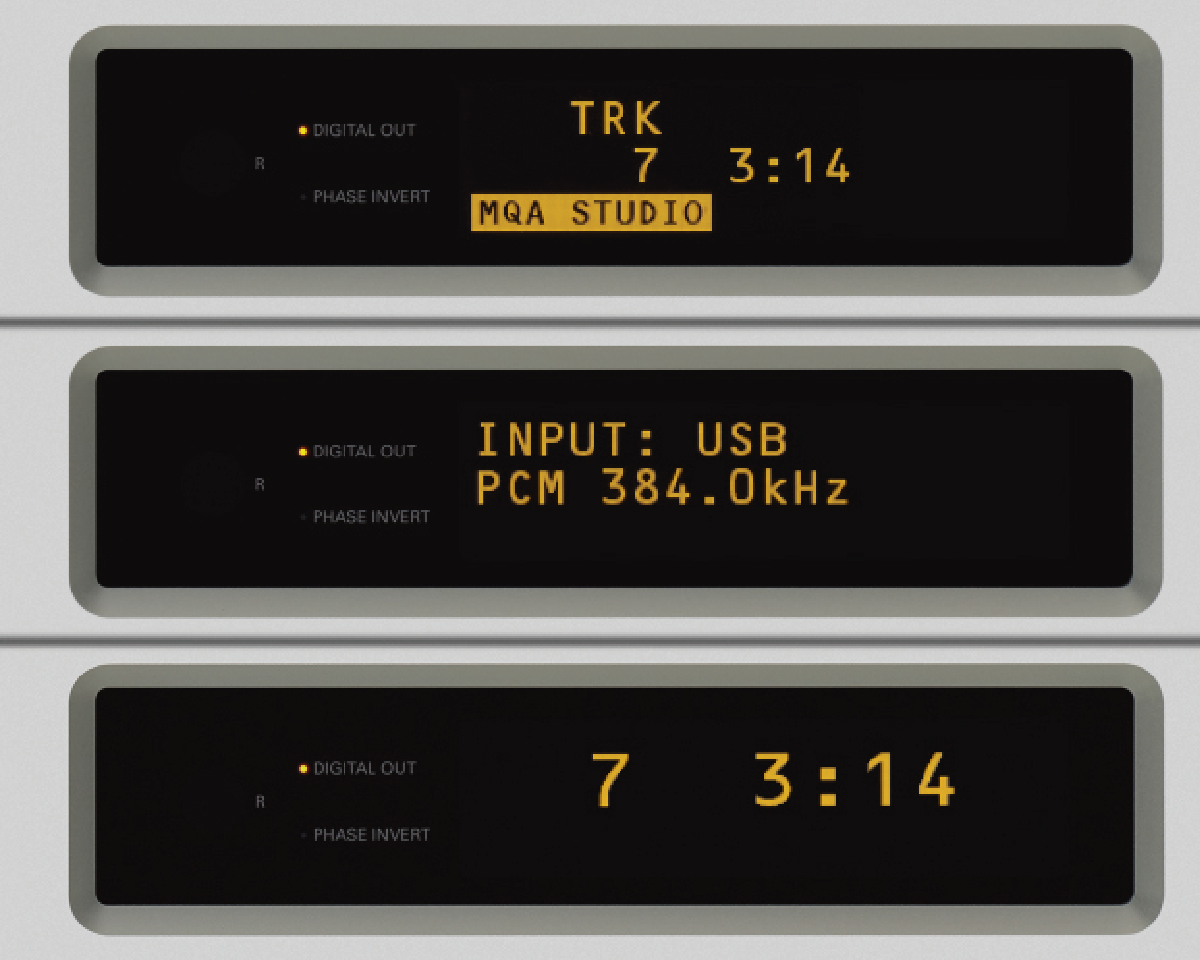

The front panel, with an elegant blasted white finish that stands out in any listening room, features a newly adopted large-format, high-resolution OLED display and a smart square-edged layout with neatly arranged control buttons. The display presents a variety of system status messages and includes user-friendly features such as a zoom display mode for better visibility from a distance, four dimmer levels, and an automatic brightness adjustment function.

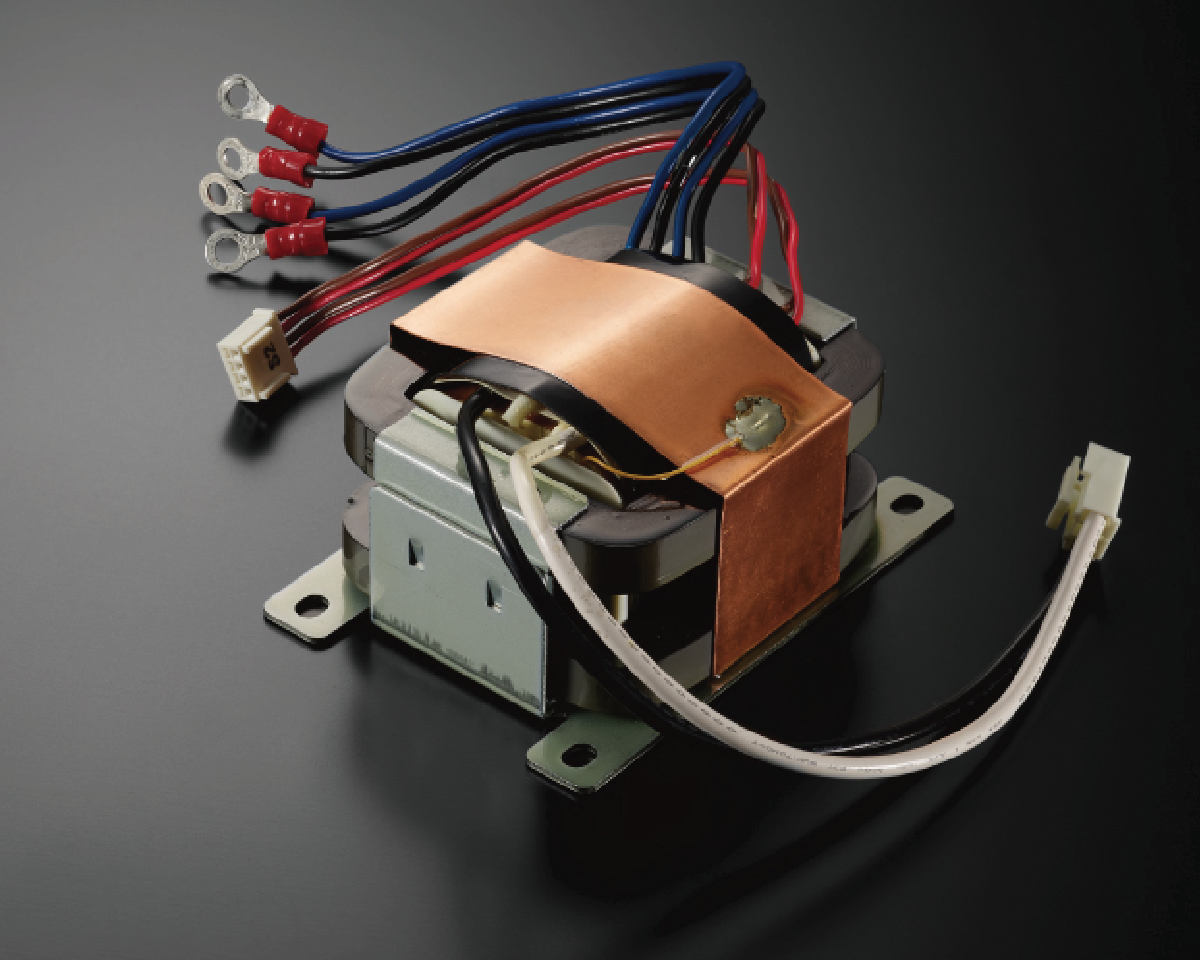

To ensure stable and high-quality power delivery to all circuit blocks, the D‑03R employs a large power transformer and highly stable power supply regulation. This includes independent regulators and large filter capacitors for each of the mechanical, digital, and analog circuits. Notably, the DAC circuit capacitor value has been doubled from 3,300 μF to 6,600 μF. The chassis features a composite, shielded, loop-less construction designed to suppress magnetic fields, ground impedance, and digital noise.

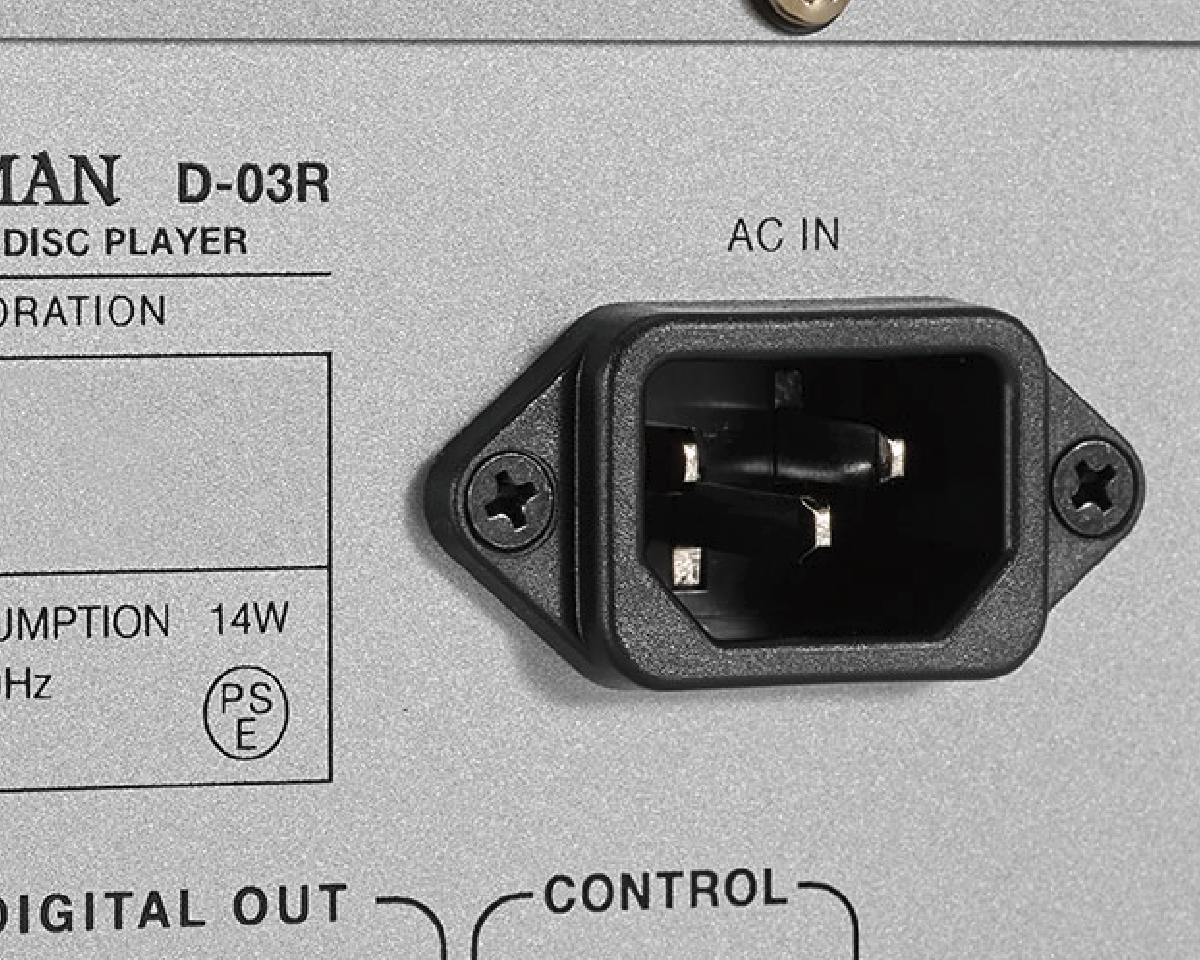

The robust AC inlet terminal is inverse mounted, a new orientation that supports the weight of the cable more securely, ensuring stable, long-term contact between the power cable and the IEC socket.

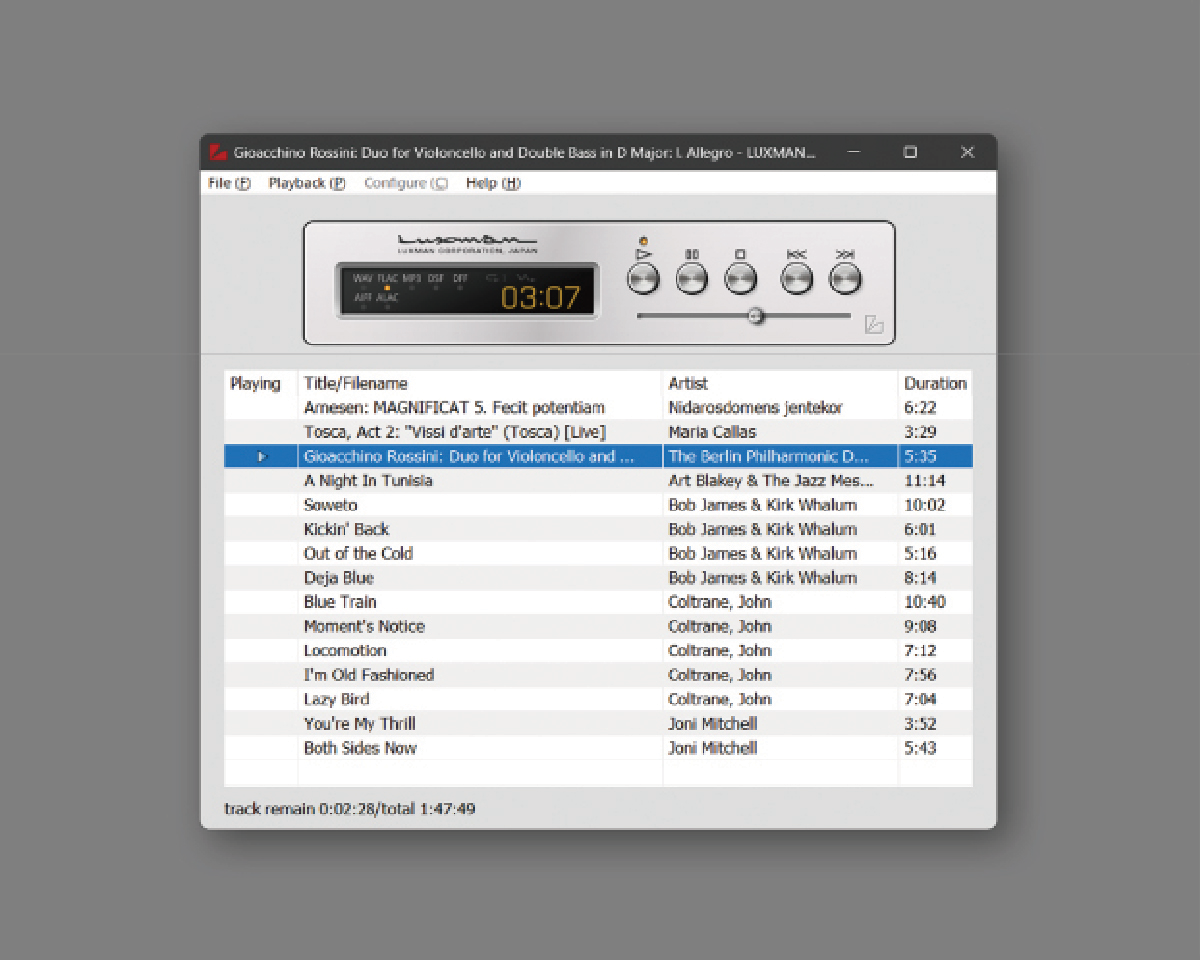

For USB audio playback via PC or Mac, Luxman provides our proprietary high-resolution playback software, Luxman Audio Player, compatible with both Windows and macOS. Supported file formats include FLAC, ALAC, WAV, AIFF, MP3, DSF, and DSDIFF. Designed with a focus on file playback, the software offers a simple, user-friendly interface and is available as a free download from Luxman's official website.

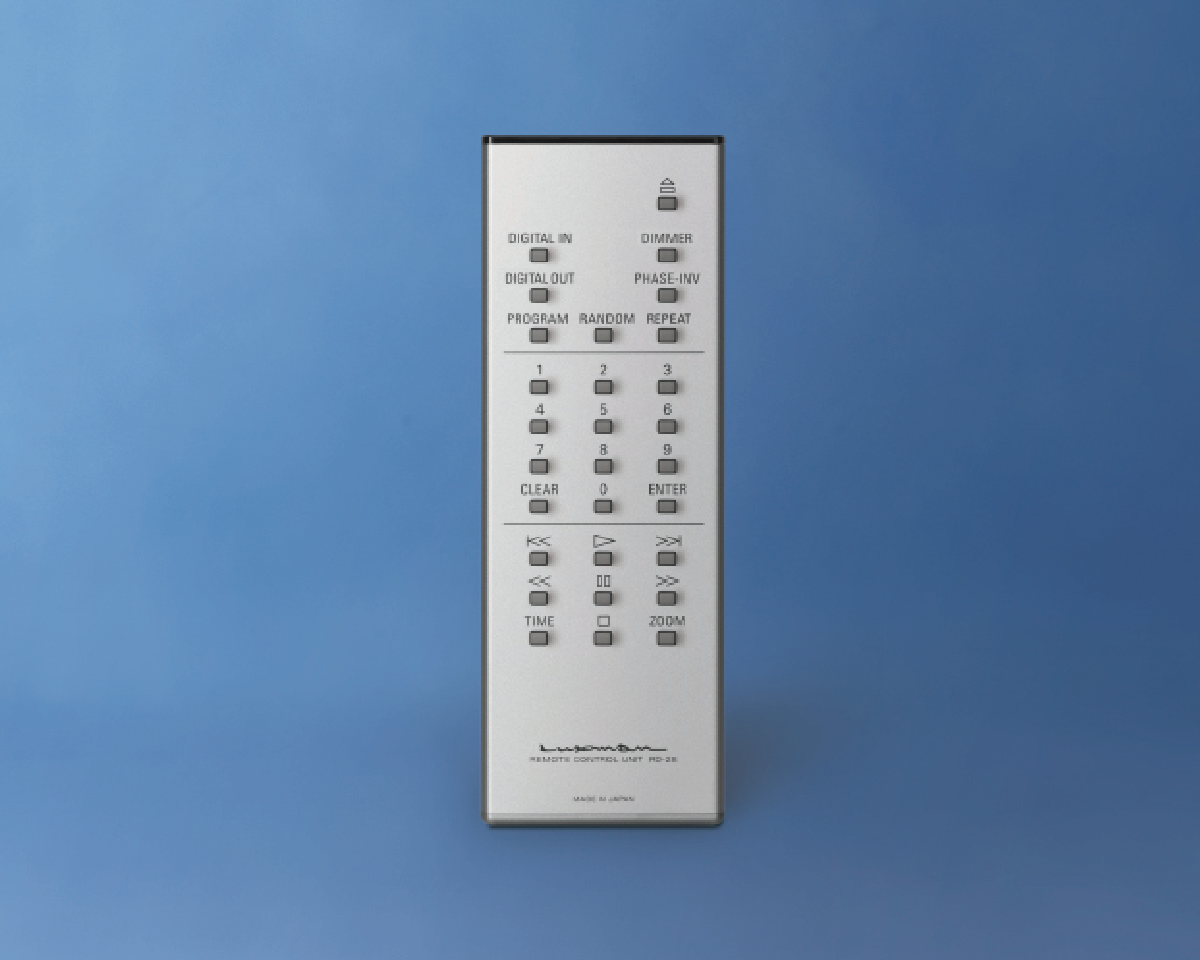

An elegant, full-function aluminum remote control with numeric keypad is supplied, offering intuitive operation of playback functions, input selection, dimmer adjustment, zoom display, and more, all from your favorite listening position. On the rear panel, newly added control input/output terminals allow for the transmission of remote control signals between compatible devices, enabling future integration with wireless control systems.
