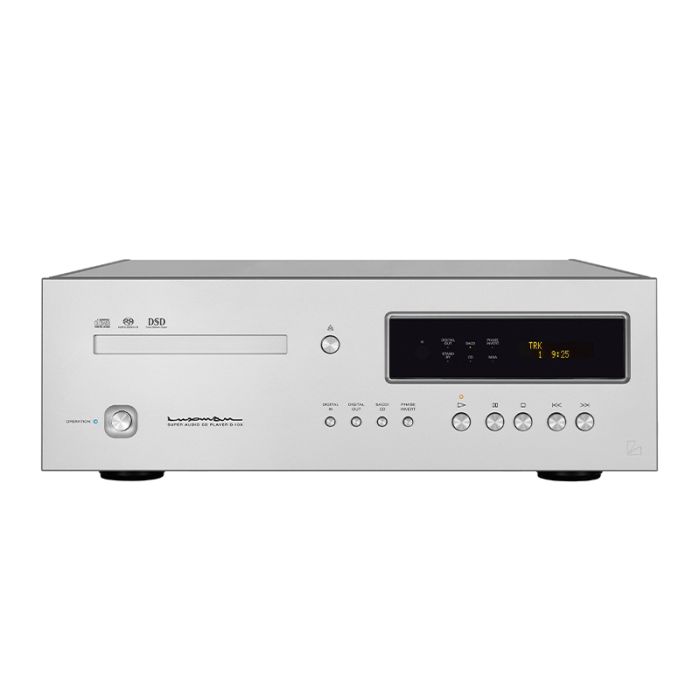

D-10X
Accuracy, sensitivity, musicality
Welcome to the ultimate expression of musicality. Luxman's flagship SACD/CD player, the D-10X builds on the brilliant heritage of their acclaimed D-08u, adding more playback capabilities, the latest conversion technology, a robustly reinforced mechanism, and a refined analogue output stage. Introducing LxDTM-i – the LUXMAN original Disc Transport Mechanism (improved). Here is the world premiere of the ROHM Semiconductor MUS-IC™ BD34301EKV digital-to-analogue converter (as of May 2020). Introducing ODNF-u – Only Distortion Negative Feedback (ultimate) – in a fully balanced output amplifier. Well-grounded in fundamental principles and endowed with the most advanced mechanical, digital and analogue technology, the LUXMAN D-10X opens the curtain on the ultimate soundstage.

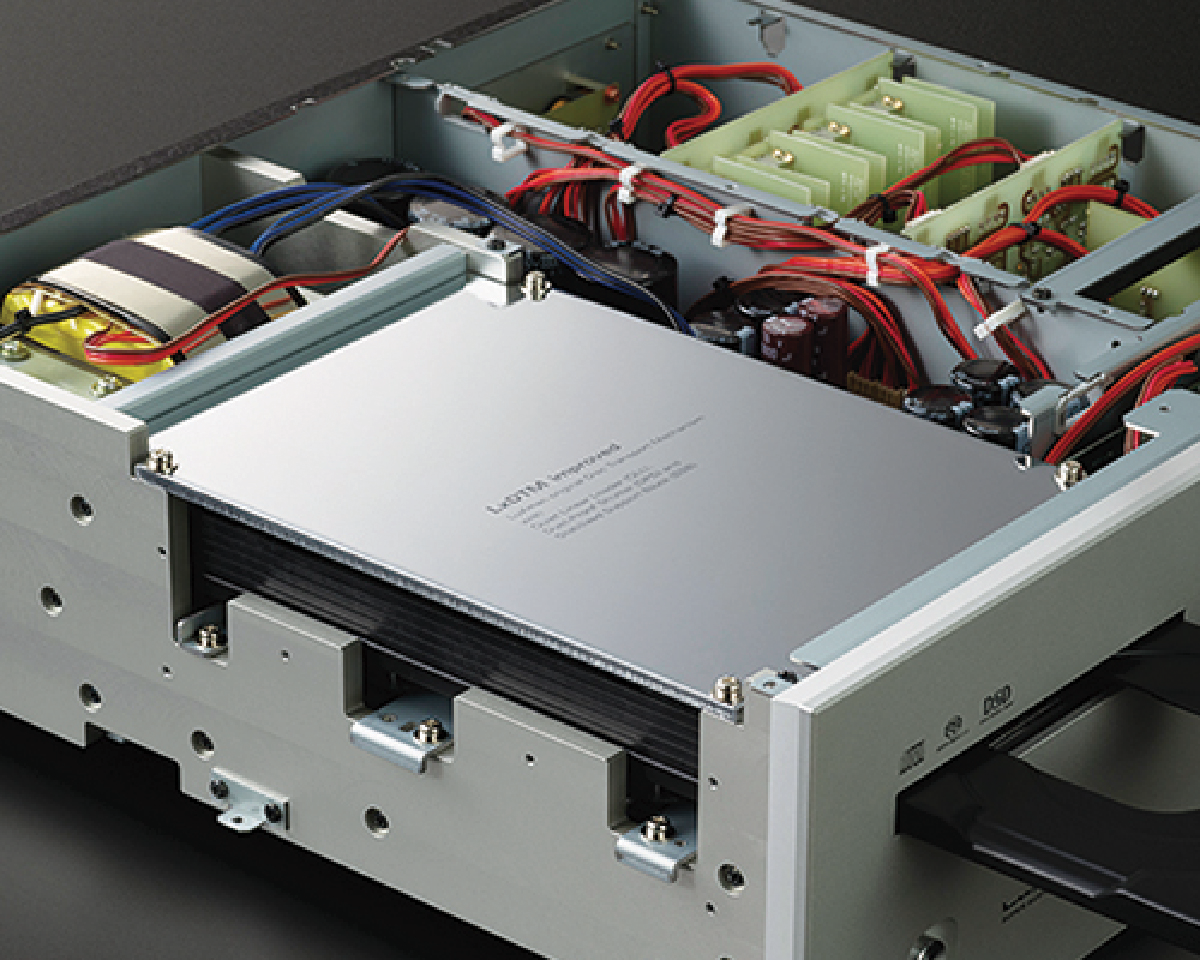

Latest LxDTM-i transport
To minimise even the slightest distortions triggered by vibration and resonance, they upgraded the disc drive, creating the LxDTM-i – LUXMAN original Disc Transport Mechanism (improved). Luxman's enclose the drive in 8 mm thick aluminium sides that extend to the front and rear panels, plus a 5 mm thick steel top plate. For added protection, the physical mounting system forms an integrated structure that supports the side frame. Together with an improved disc reading mechanism, the result is playback of an altogether higher order.

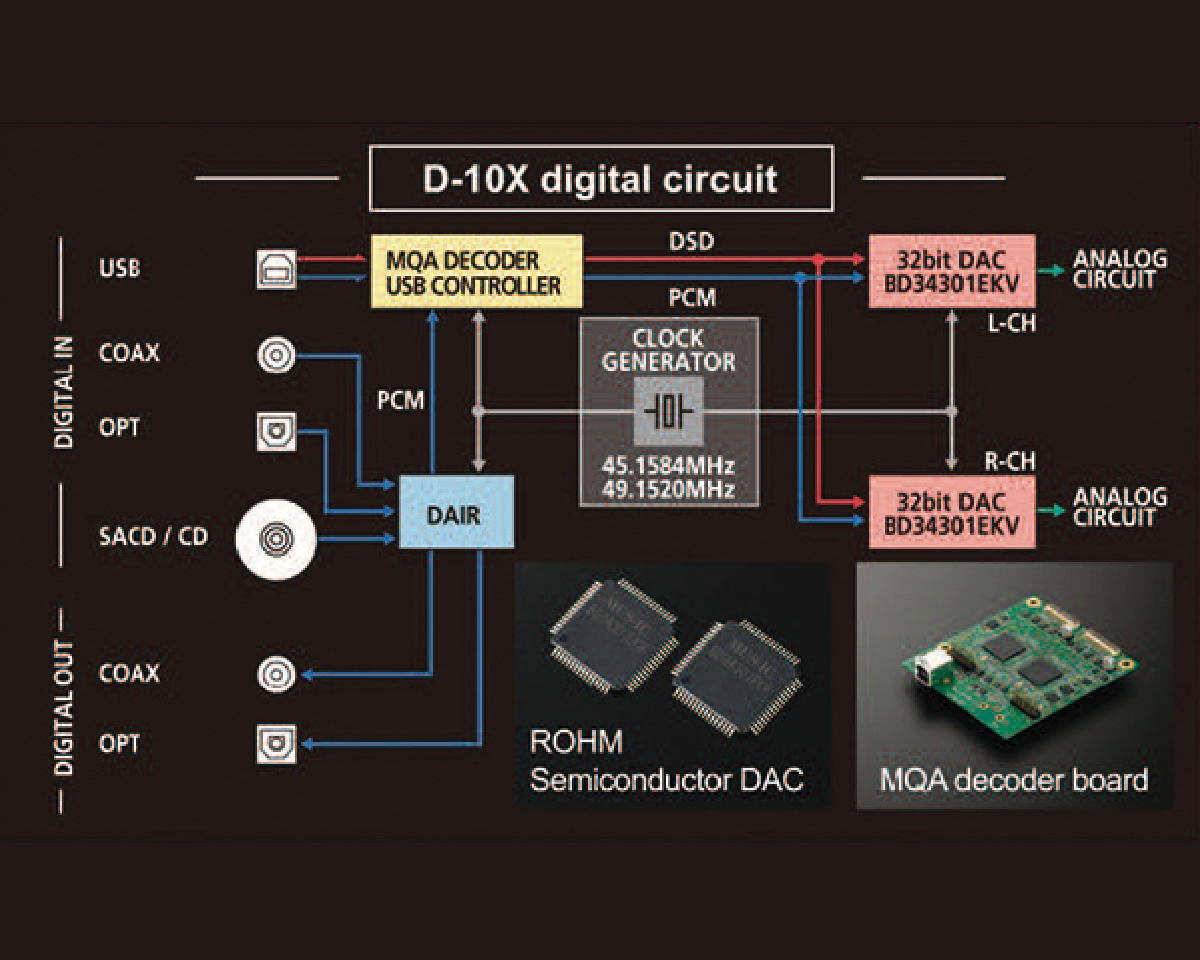

Advanced digital processing
The D-10X marks the debut of the world’s finest D/A converter, the MUS-IC™ BD34301EKV from ROHM Semiconductor. Used in dual mono configuration, these converters combine top-flight specs with an impressive suite of silicone-level refinements’ (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The player includes MQA technology, which enables you to play back MQA-CDs as well as MQA audio files up to 24-bit transferred via USB, optical and coaxial inputs.

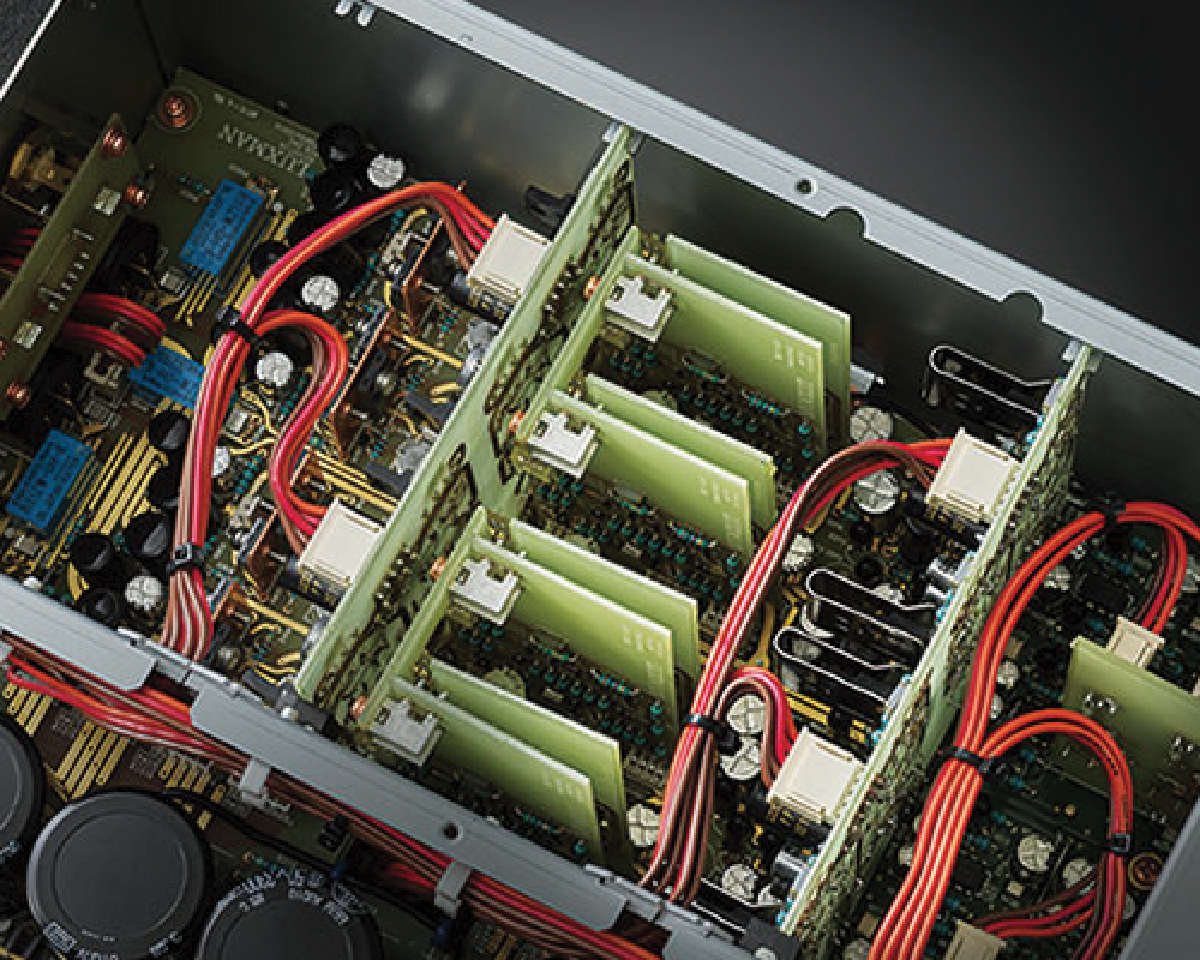

ODNF-u balanced analogue circuit
Their years of ODNF amplifier development have resulted in ODNF-u – Only Distortion Negative Feedback (ultimate) – which debuts on the D-10X. This fully balanced configuration maximises error detection accuracy, minimising distortion. You’ll hear far greater expressive power with enhanced micro dynamics across the audio spectrum, especially in the higher frequencies. The stage also achieves a natural and smooth waveform without the conventional output filters. The secret is the tailored, gradual 1st order filter x 3 band processing inside the circuitry. Superb circuitry deserves a strong chassis. To protect the analogue signal from changes in ground impedance and magnetic fields, the D-10X incorporates a composite, loop-less chassis. Well shielded, the chassis is also effective at blocking digital noise.

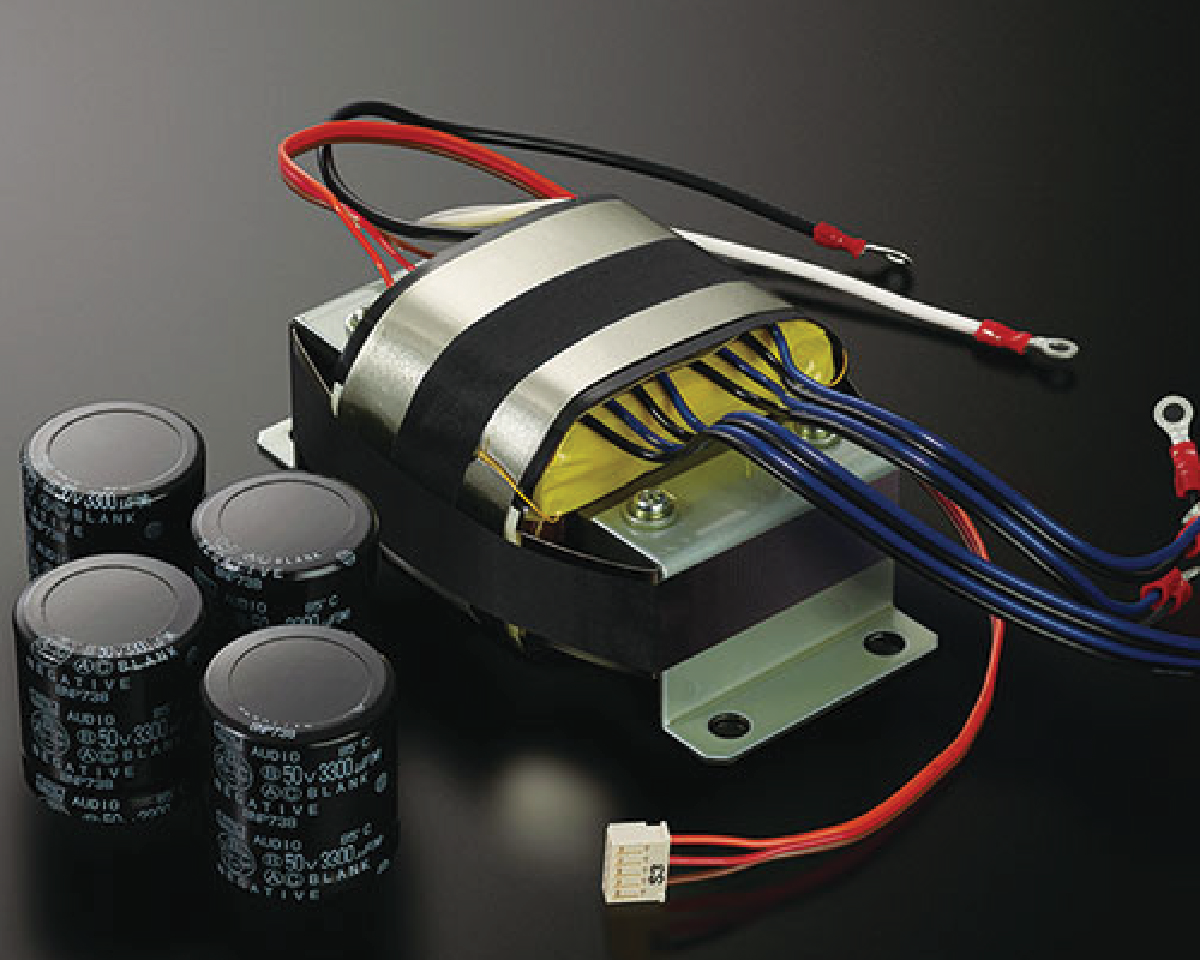

Substantial power supplies
To provide highly abundant, highly stable power, they increased the power transformer capacity by 27% compared to Luxman’s previous flagship. They also provide independent regulators for each circuit along with formidable filter capacitors for the ultimate stability.

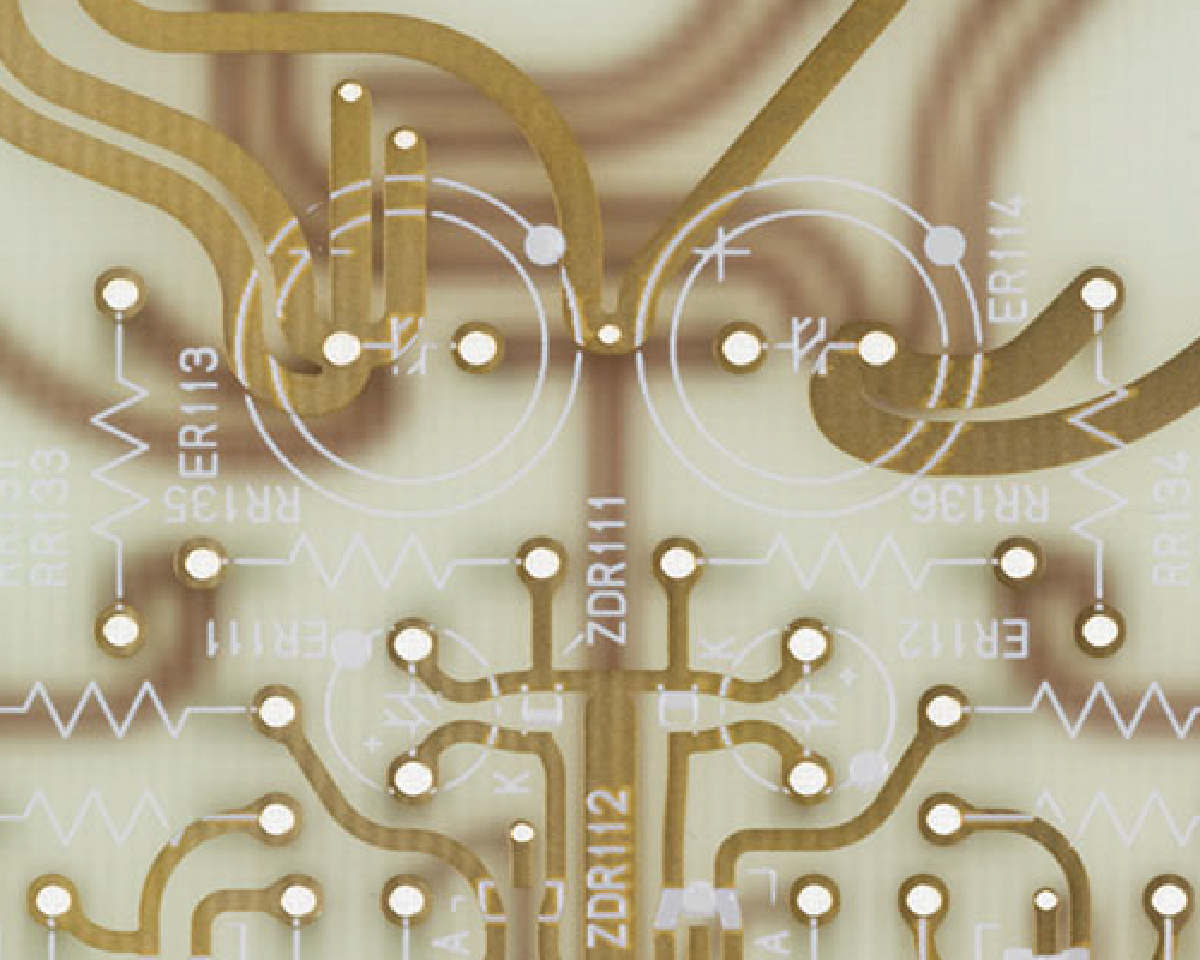

Unique LUXMAN PCB layout
Dielectric effects, unwanted resistance and stray capacitance in printed circuit board patterns can all degrade the audio signal. LUXMAN suppresses these effects with generously thick 100 μm copper foil, gold-plated connections, and peel coat removal of the solder mask. In addition, their gently curved wiring pattern delivers smooth signal flow.
Premium selected components
No detail is too small for LUXMAN engineers to consider and refine. The RCA output jacks apply gold plating over an alloy that combines the conductivity of copper with the durability of brass. Luxman use rugged Neutrik XLR terminals for the balanced outputs. In addition, density gradient cast iron insulator feet provide firm support, while diffusing shelf-borne resonance.

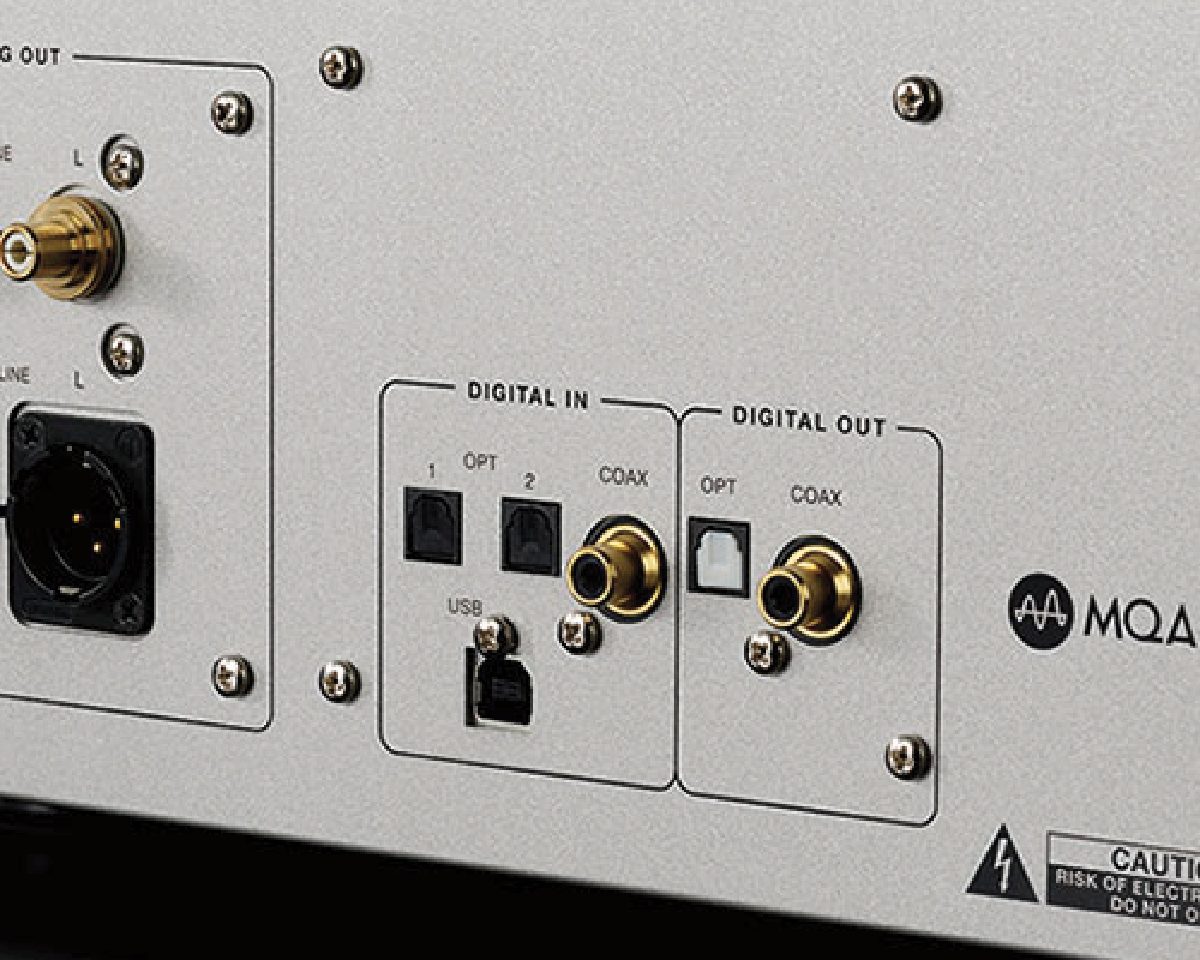

Versatile digital inputs
To complement advanced audio systems, they provide one coaxial and two optical inputs, plus a USB input that supports both DSD and PCM. In addition to isochronous transfer, the USB supports four modes of Bulk Pet® transfer that optimise the processor load between the source and the D-10X for improved transparency.

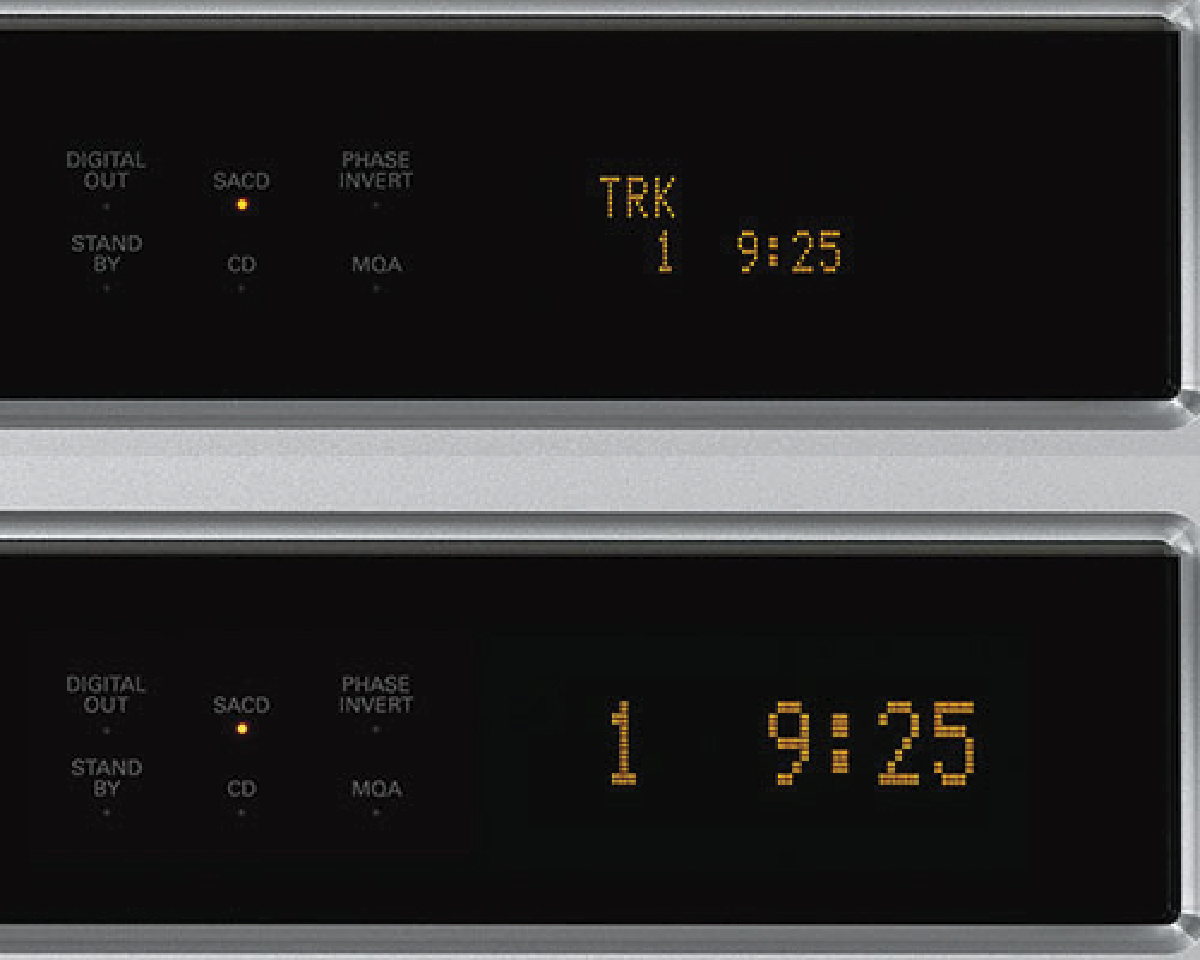

4X zoom display
You select your listening position carefully. The 4X zoom function makes the fluorescent display easy to read from that seat. When playing MQA-CDs and files, a three-colour indicator confirms decode status: Studio (blue), Authentic (green) and Renderer (magenta).
Ergonomic IR remote control
The supplied aluminium remote control has the same blasted white finish as the player's front panel. Without leaving the ideal listening position, you can use the numeric keypad, transport controls and display dimmer.

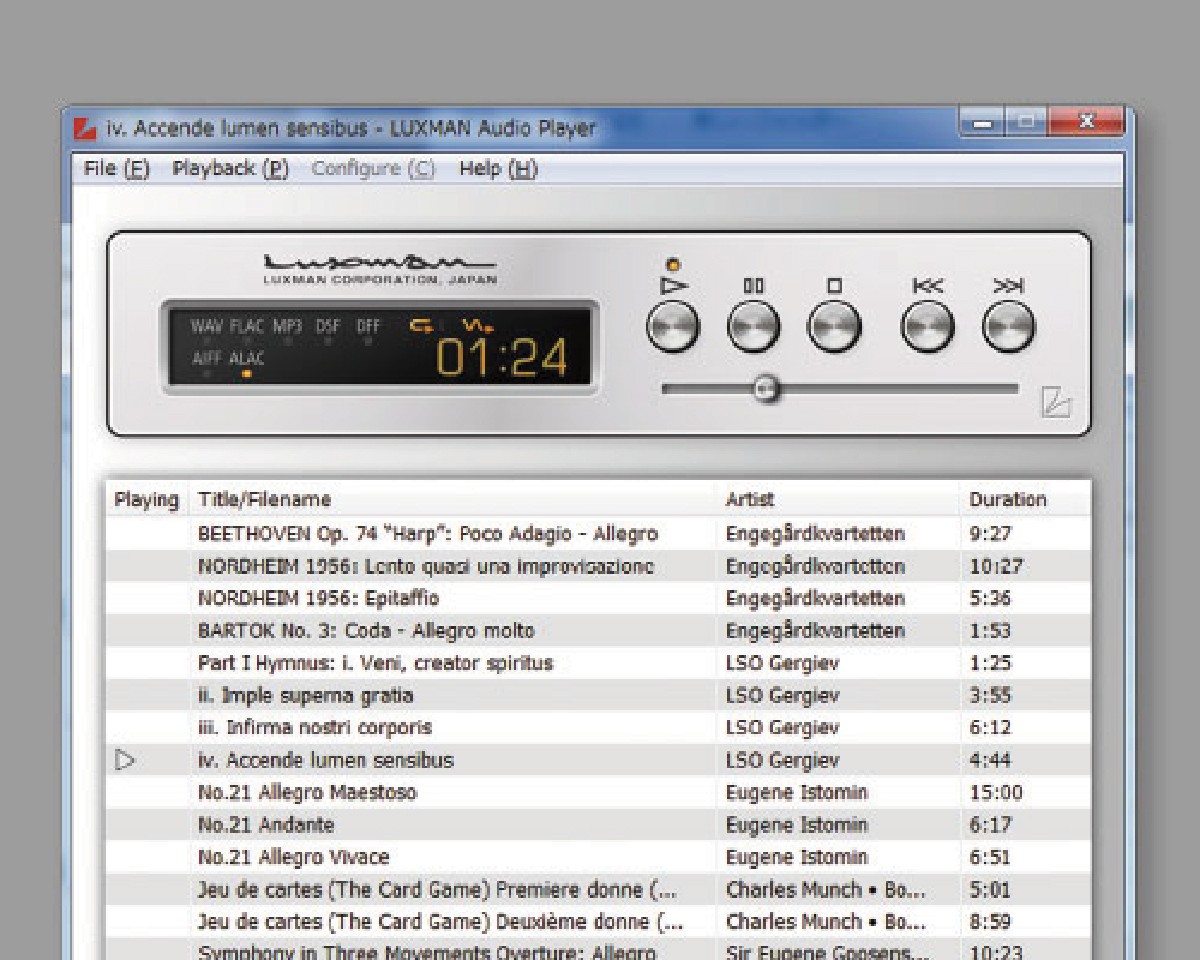

LUXMAN’s original playback software
For playing back music from a PC, they recommend their LUXMAN Audio Player application. This software supports FLAC, ALAC, WAV, AIFF, MP3, DSF and DSDIFF files. You can download the software for Windows and macOS from the official LUXMAN website.
