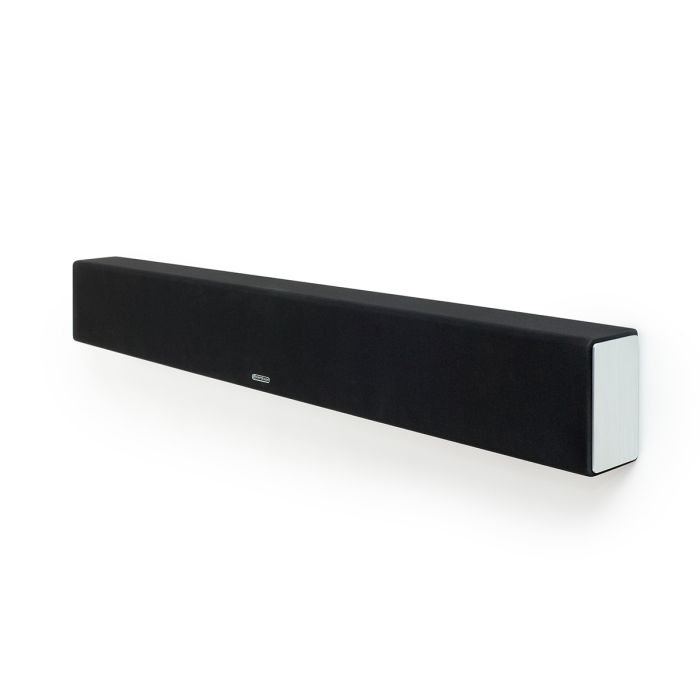

Monitor Audio SB-2
Now you can add big sound to your big TV display without filling the room with speakers.
Sold as a single speaker.
Monitor Audio's Soundbar SB-2 will complete your HD picture entertainment with the high definition sound you've been missing, and match the look of your TV with contemporary lifestyle design.
The compact SB-2 is engineered for seamless integration with 50"- 60" TVs, featuring three separate driver arrays for left, centre, right channels in a single cabinet. The SB-2 employs individual 4" C-CAM® mid-bass, 1" C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.
In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
The new SB Series of passive soundbars will contribute the essential high definition audio element to screen entertainment from thin TVs of 50" and above. Complete with a wide range of mounting options for easy and discreet custom installation, the two super-slim SB models are engineered with flagship cabinet and driver technologies to combine efficient low-profile design with extraordinary room-filling dynamics.
The Monitor Audio SB-2 features the following key technologies:
- C-CAM® (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
- C-CAM gold dome tweeters per channel
- Auxiliary Bass Reflex (ABR) per channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
Frequency Response (-3dB)
90Hz – 30kHz
Sensitivity ([email protected])
Nominal Impedance (ohms)
Power Handling Single - R.M.S. (W)
System Power Handling - R.M.S. (W)
100 (High pass filter set to 100Hz)
Recommended Amp Requirements (W)
30 - 100
Recommended High Pass Crossover Frequency
80 - 120Hz
Maximum SPL (dBA)
104 (108.8 all channels driven)
3 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
3 x 4” (100mm) C-CAM® cone bass/mid driver
3 x 1” (25mm) C-CAM gold dome tweeter
Cabinet Dimensions (HxWxD)
145 x 1110 x 89mm (511/16 x 4311/16 x 31/2 inch)
External Dimensions Inc Bracket (HxWxD)
145 x 1110 x 100mm (511/16 x 4311/16 x 315/16 inch)
7.64Kg (16lb 12oz)
