Q Acoustics E120 Wireless Audio System

This easy wall-mounting wireless audio system delivers superior sound to any compatible device. Stream music, the radio or even use the E120 for your TV audio. With IP54 certification, the E120 can be used in kitchens, bathrooms or any other indoor environment where moisture could be present.
Options are In Stock
Only %1 left
SKU
E120
As low as £429.00
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 105.67ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Wireless streaming and radio

Once installed into the living space wall (all cabling is supplied) and connected to chosen speakers, users can wirelessly stream music from popular music services, via Bluetooth® , from compatible devices such as smartphones, tablets, laptops and DAPs. Support for Bluetooth 5.0 provides greater range and a more stable wireless connection when streaming. Radio fans can enjoy broadcasts over DAB+ or FM with up to five presets configurable to access favourite stations with a single button touch.



Enhance the sound on your TV

With digital and analogue connections on hand, the E120 enables connection to a TV to enhance the audio, delivering a more immersive and dynamic television and movie watching experience. In addition, a rear analogue audio output can be configured to plug into a subwoofer for extra low-end bass sounds, an external power amplifier or even another E120 system.



Suitable for kitchens and bathrooms

Boasting an IP54-rating enables the system to be installed into bathrooms and kitchens where humidity and the ingress of water is possible. Using the supplied splash proof remote control (or control via the app/device they are using), homeowners can listen to their favourite music and radio stations while relaxing in the bath or preparing an evening meal.

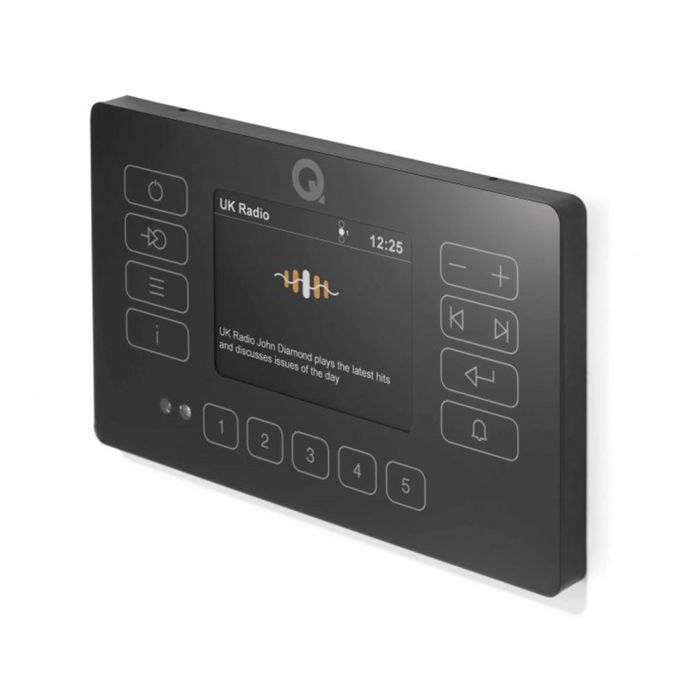

Touch control and colour display

To blend seamlessly into any interior, the main wall panel arrives in two classic colours: black and white. Boasting touch sensitive controls and a sharp 3.2” colour display that shows track, artist and album name, an internal light sensor can be configured to automatically set the display brightness. Owners can also manually set the on and dim levels, an important feature when using E120 in bedrooms to avoid background light during sleeping hours. The E120 also features an alarm function.



Flexible speaker options

Powered by a high-quality class D stereo amplifier, the E120 serves up 2 x 25W of power at 6ohms - optimised for Q Acoustics’ in-ceiling and in-wall speakers. Furthermore, owners can connect any pair of passive speakers, including cabinet designs between 6 - 8 ohms. The speaker outputs can be configured as stereo or dual mono (both output left and right combined) by setting a small switch, while a pair of speakers can be wired in series on each output to support even distribution of sound in larger rooms.

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.38ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

E120 Specifications

Audio Sources DAB / DAB+ / FM with RDS
Bluetooth Version 5.0, A2DP
Analogue Input

Type: 3.5mm stereo

Sensitivity: 350mV

Max level: 1.5V

Impedence: 10k ohm

Optical Input

Type: mini TOSLINK

Resolution: 16bit 48kHz

Speaker Outputs Left & right, stereo or dual mono
Analogue Output

Type: 3.5mm stereo

Modes: Fixed or variable

Max level: 670mV

Amplifier

Type: Class D

Continuous power: 2 x 25W @ 6ohm

THD: 0.07% @ 1W / 0.2% @ rated power

SNR: >75dB @ Rated power

Frequency response: 20Hz - 20kHz +/- 1dB

IP Ratings

E120 wall panel: IP54

Splash proof remote: IP67

Control

Touch sensitive buttons

Infra-red remote control

Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name

Menu Languages English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
Alarms x2 once, daily, weekdays, weekends
Power Supply

Input: 100 - 240V AC 50/60 Hz

Output : 22V DC 1.5amps

Dimensions (HxWxD): 30mm x 50mm x 115mm

Power Consumption

Typical: 10W

Standby: <1W

Deep standby: <0.5W

Wall Panel

Net weight: 0.251kg

Dimensions (HxWxD): 91mm x 151mm x 33mm

Speaker Cable Supplied

Gauge 19 AWG

Lengths: 2 x 7m

Power Cable Supplied

Gauge: 16 AWG

Lengths: 5m

Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female
