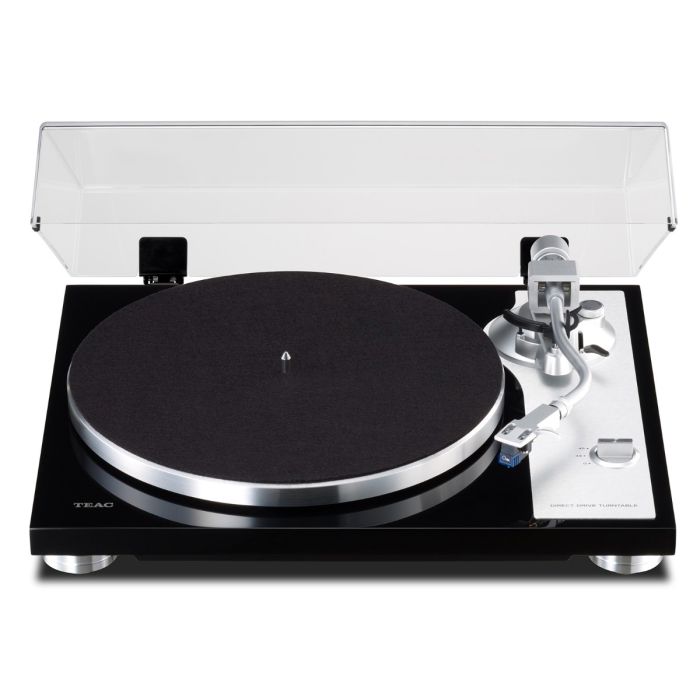

Teac Direct Drive Analog Turn Table TN-4D

The TN-4D is a direct-drive, analog turntable with an elegant, low-profile design, made possible by the use of a newly-developed brushless DC servo motor.

SKU
TN4D
As low as £479.00 Regular Price £549.00

The TN-4D is a direct-drive, analog turntable with an elegant, low-profile design, made possible by the use of a newly-developed brushless DC servo motor.

The new brushless DC motor (with feedback control system) achieves crystal-locked speed stability and smoother rotation while also eliminating cogging*. This low-profile motor allowed us to design a plinth that’s extraordinarily sleek and stylish compared to that of most other direct drive turntables.

The new tonearm employs knife-edge, pivot-point bearings, developed in collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer. The result is an insightful, high-resolution sound quality that tonearms with conventional bearings can’t match. Partnering it is a carefully designed PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system.

A high quality NJM8080 op-amp, specially designed for hi-fi applications by New Japan Radio Corporation, is employed to convey the finest of musical detail. Additionally, a USB port on the back panel allows you to digitally archive your vinyl collection via your PC/Mac.

To extract the music from your vinyl, the TN-4D comes with a highly-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. Noted for its innate musicality, the cartridge comes pre-installed on the headshell at the factory, allowing near ‘plug and play’ operation.

The S-shaped tonearm meanwhile allows for quick cartridge/headshell swaps, so users can alter the sound quality by experimenting with different cartridges, if the desire takes them.

The TN-4D is an analog turntable that achieves highly accurate rotational speeds and is very distinctive, for a direct-drive design, thanks to its sleek and stylish aesthetics.


New motor, developed exclusively for direct-drive turntables
The TN-4D uses a sleek, brushless DC motor, offering crystal-locked speed accuracy, regulated by a computer-controlled feedback circuit and achieving low wow-and-flutter levels for a direct drive turntable, especially one with such a stylish, low-profile design.

Knife-edge, pivot-point tonearm bearings
In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-4D’s tonearm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements encountered by this tonearm actually help in delivering a more dynamic sound with excellent resolution.

The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges/headshells, and supports a wide range of cartridge weights (from 14 – 23g / 0.5 – 0.8 oz.)

Precision anti-skating and stylus-pressure adjustment
As you might expect, the tonearm is equipped with a counterweight, for precise stylus-pressure adjustment, and an anti-skating mechanism.

Pre-installed Oyster cartridge by SUMIKO
The TN-4D comes with a well-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. Regardless of the type of music, the Oyster cartridge delivers a powerful but insightful performance.

Built-in PHONO EQ amplifier supporting MM cartridges
The TN-4D comes with a built-in PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system. The NJM8080 IC from New Japan Radio Corporation is employed for op-amp duties, bringing up the level of the tiny signals received via the cartridge up to LINE level strength without any loss of quality.

Die-cast platter
In conjunction with the newly-developed motor, the high inertia, die-cast aluminium platter helps to achieve better speed stability.

USB digital output
A USB port on the back panel delivers CD-quality digital audio to your PC/Mac, allowing you to record/archive your vinyl in a high quality, digital audio format.

Once you have archived your vinyl to digital, it’s a simple matter to listen to them while out and about, via a smartphone/portable audio player, or in your car (by burning them onto a CD-R or transferring them to a memory card/stick).

And to ensure pristine signal transfer, gold-plated PHONO/LINE output terminals are employed to prevent analog audio signals from losing quality as a result of oxidation.

Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminium shell topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics the TN-4D is very resistant to acoustic feedback.

2-speed turntable for 33-⅓ and 45 rpm
The TN-4D supports 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.


Drive Direct drive
Rotational speed 33 1/3, 45 rpm
Recording function via USB
Features Built-in preamp , incl. pick-up
Operating voltage 230 V / AC
Weight 6.1 kg
Length 356 mm
Width 420 mm
Height 117 mm
