When you're shopping for hi-fi speakers, you'll hear terms like "2.5-way design," "upgraded crossovers," and exotic driver materials that sound like they belong on the Starship Enterprise. Salespeople and reviewers often throw these around assuming everyone knows what they mean, which can make the world of hi-fi feel overwhelming—especially if you're new to it.
But here's the thing: there's actually a fascinating amount of engineering going on to turn two boxes into big, three-dimensional sound. Understanding how speakers work doesn't require a degree in acoustics—just a bit of insight into what each component does and why it matters.
Let's break down the main parts of a loudspeaker and demystify what's really happening inside those cabinets.
Speaker Cabinets: More Than Just a Box
The cabinet is the part you see, but it does far more than hold the drivers together and look attractive in your room. The cabinet's size, shape, design, internal bracing, and materials all fundamentally shape what you hear from your speakers.
Why Cabinet Design Matters
A well-designed speaker cabinet needs to stay acoustically quiet while the drivers do their job. If the cabinet vibrates, it adds unwanted coloration to your music—essentially, you're listening to furniture resonance rather than pure sound.
This is why quality bookshelf speakers and floorstanding speakers use carefully engineered cabinets with internal bracing and specific construction techniques. The goal is to create an inert, non-resonant enclosure that lets the drivers perform without interference.
Damping Materials
Inside the cabinet, damping materials absorb internal reflections and standing waves. Without proper damping, sound from the back of the drivers bounces around inside the cabinet, muddying the mid-range frequencies and reducing clarity.
Proper damping not only improves clarity but also makes the cabinet behave as if it's acoustically larger than its physical dimensions. If you can hear the cabinet itself resonating, you're listening to furniture, not music.
Bass Loading: How Speakers Handle Low Frequencies
How a speaker cabinet handles bass is crucial to overall sound quality. There are several common approaches to bass loading, each with distinct characteristics:
Bass Reflex (Ported) Speakers
Bass reflex or ported cabinets are the most common design you'll find in hi-fi speakers. These use a carefully tuned port (or vent) that resonates with the woofer to boost bass response.
Placement considerations: Rear-ported speakers need some breathing space from walls, while front-ported designs offer more placement flexibility—particularly useful in smaller rooms or when using bookshelf speakers on stands near walls.
Sealed (Acoustic Suspension) Speakers
Sealed cabinets have no port at all. The trade-off is worthwhile for many listeners: bass is typically tighter, faster, and more controlled, though usually at the cost of some depth and speaker efficiency. You'll need a more powerful amplifier to get the same volume levels compared to ported designs.
Transmission Line Speakers
More specialized transmission line speakers use a folded internal acoustic labyrinth that guides bass through the cabinet and exits through a vent. The result is deep, smooth, incredibly controlled low frequencies without boom or distortion. However, these designs require extremely careful engineering and are typically found in higher-end speaker ranges.
The bottom line: Different approaches, same goal—clean, punchy, enjoyable bass rather than boomy nonsense that fatigues your ears.
Understanding Speaker Drivers
Drivers are the moving parts that convert electrical power from your amplifier into sound waves. Most speakers use multiple drivers, each specialized for different frequency ranges.

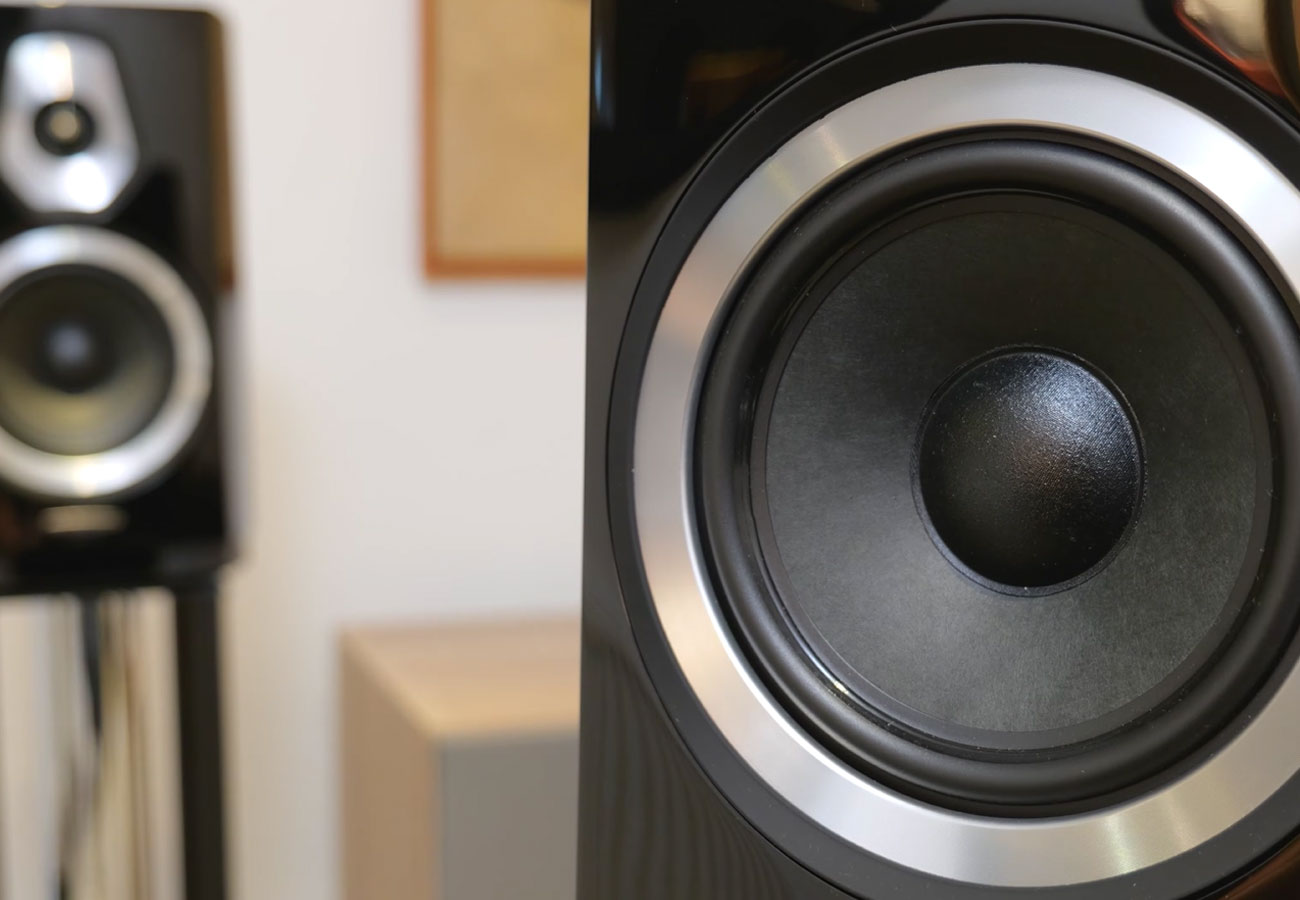

Woofers: Handling the Bass
Woofers handle bass frequencies and sometimes lower mid-range, depending on the speaker design. Low bass requires significant air movement, which is why woofers are the largest drivers in a speaker.
Large woofers can deliver incredible, effortless, room-filling sound. But in small rooms or poorly designed speakers, they can sound slow, overpowering, and boomy.
Smaller bass drivers have improved dramatically thanks to modern materials and technology. When used in multiples (as you'll find in many floorstanding speakers), they can offer exceptional control and make speaker placement easier while still delivering impressive bass response.
Mid-Range Drivers: Where the Music Lives
The mid-range covers voices, guitars, pianos, and most of the fundamental frequencies where music actually lives. This range is absolutely critical—if the mid-range is off, nothing else matters.
Our ears evolved to be incredibly sensitive to human voices, which sit squarely in the mid-range. We notice unnatural vocal reproduction immediately. Some speakers use dedicated mid-range drivers, while others combine this duty with the woofer (more on speaker configurations below).
Getting the mid-range right is where the realism in music lives, and it's one of the toughest aspects of speaker design to perfect.
Tweeters: The High Frequency Detail
Tweeters handle treble—the high-pitched sounds at the top of our hearing range. The tweeter dictates detail, clarity, and the sense of space in your music.
Tweeters come in many varieties: soft dome, metal dome, ribbon, beryllium, horn-loaded, and more. Each material and design approach has distinct sonic characteristics.
A good tweeter blends seamlessly with the rest of the speaker. A bad one stands out harshly, making you want to turn down the volume and question your speaker choice entirely.
Concentric (Coaxial) Drivers
Some manufacturers use specialist concentric or coaxial driver designs that combine the woofer and tweeter into a single unit. With the tweeter placed right at the center of the woofer cone, they act as a single point source.
This approach widens the "sweet spot," improves imaging, reduces phase issues, and delivers a cleaner, more coherent sound when executed well. KEF's Uni-Q driver technology is perhaps the most well-known example of this design.
Driver Materials Matter
Cone materials aren't just cosmetic - they fundamentally shape how speakers sound and significantly impact what you'll pay.
There's an enormous range of materials used: paper, polypropylene, metals, ceramics, Kevlar, and even wood. Different brands favour different materials and designs. Most manufacturers give these materials catchy marketing names, and some exact formulas are closely guarded trade secrets.
At the end of the day, the only real way to know what you'll prefer is to listen to different speakers and trust your own ears.

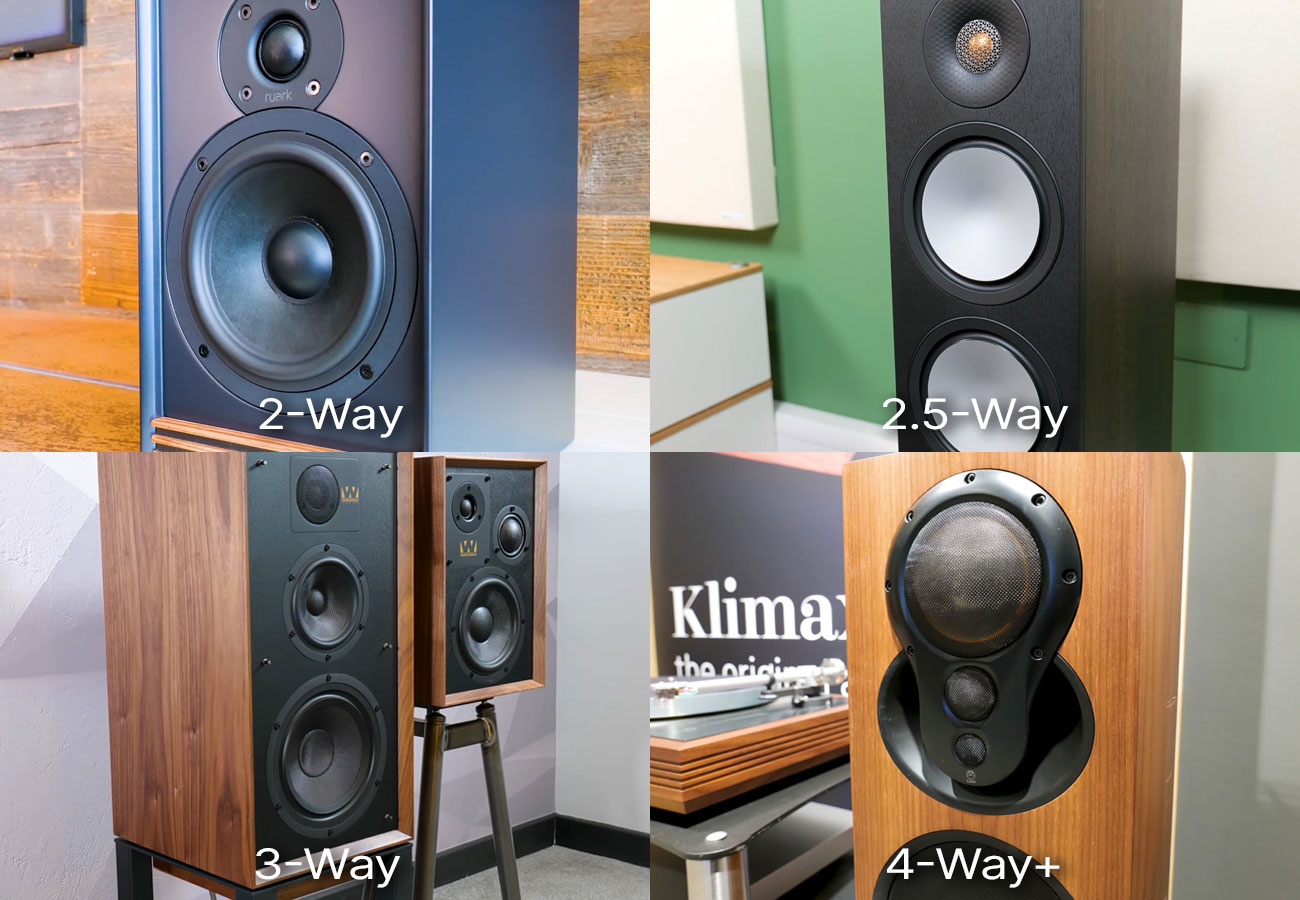

How Drivers Work Together: 2-Way, 2.5-Way, 3-Way Designs
How the drivers work together is just as important as what they're made from. Speaker configurations can be confusing if you're new to hi-fi, so let's clarify:
2-Way Speakers
The woofer handles bass and mid-range, while the tweeter handles treble. It's straightforward, clean, and the most common setup—especially in bookshelf speakers. When done well, 2-way designs offer excellent coherence and simplicity.
2.5-Way Speakers
You'll see this configuration in many compact floorstanding speakers. One tweeter and one woofer handle mid-range and bass, while additional woofer(s) are dedicated to bass frequencies alone. This provides more low-frequency punch without the complexity of a full 3-way design.
3-Way Speakers
These feature at least one dedicated woofer, mid-range driver, and tweeter. The benefits include cleaner mids, better dynamics, and lower distortion. However, 3-way designs need carefully engineered crossovers and cabinet construction to perform properly—when done right, they're exceptional.
4-Way and Beyond
Some high-end speakers go further, adding extra bass drivers or super tweeters that extend beyond human hearing. The benefits here are often subtle and quite subjective, depending on the overall system and indeed the listener.
Crossovers: The Brain of Your Speakers
The crossover is the electronic circuit that filters the signal from your amplifier, sending the correct frequencies to each driver. It profoundly influences timing, phase accuracy, and how seamlessly the sound blends together.
A well-designed crossover is completely invisible—you simply hear music as it should sound, with drivers working in perfect harmony. A poorly designed crossover, however, can dominate what you hear, making music sound unnatural because the drivers aren't properly integrated.
Quality components and thoughtful crossover design make all the difference between good speakers and exceptional ones.
Binding Posts and Bi-Wiring Options
Good speaker terminals (binding posts) and quality cables provide a secure, low-resistance connection between your amplifier and speakers. Poor, corroded, or damaged terminals add resistance, reduce amplifier control, and can genuinely hurt performance.
Standard Connection
Most speakers use a single pair of terminals for all frequencies—simple, reliable, and perfectly adequate for the vast majority of systems.
Bi-Wiring
Some speakers offer optional bi-wiring, which separates bass and treble connections with an extra speaker cable. Some high-end models take this even further, requiring multiple cables, compatible amplifiers, or even separate power amplifiers for different frequency ranges.
The goal is improved clarity and separation by reducing interaction between high and low frequencies. The benefits are system-dependent and often subjective, but the potential for sonic improvement is real.
Why Understanding Speaker Components Matters
A loudspeaker is a complete system in itself. Cabinet damping, port design, drivers, crossovers—everything must work together in harmony to sound decent. The final sound depends on how well these engineering choices are balanced.
There's no single "perfect" speaker design, just what works best for your room, your system, your listening preferences, and your budget.
Take Your Time Choosing Speakers
When you're buying speakers, take your time. Listen to different designs, different materials, different configurations. Trust your ears above all else.
